Raily - a simple rail system for wall organization. Especially suited for Kitchen and Workspace but functional in the entire household. All parts are quick and easy to print and serve a variety of use cases. Simply place some rails wherever you need them and keep expanding and reorganizing your storage.

If you have ideas for more parts let me know!

Parts

• Rails: 3 sizes from 100 to 300 mm. 100 mm long end pieces are also included for a cleaner look
• Boxes: 20 sizes ranging from 40 x 40 x 40 mm to 100 x 100 x 100 mm
• Hook: 1 size
• Knob: 5 sizes from 10 mm to 50 mm in length
• Block: 10 sizes with either no slit, a 4 or 8 mm slit, in the depth of either 40 or 60 mm, both as single and triple element
• Hole: 3 sizes with a diameter of 12, 16 and 20 mm

Instructions

• All parts are rotated correctly, do not rotate them to a different print orientation
• Print and place your rails, pay attention that there is enough space on one side to slide the parts on. You can either screw or glue them onto your wall. I like to use 3M tape. The screw holes have a diameter of 5.5 mm, and they are always 100 mm apart.

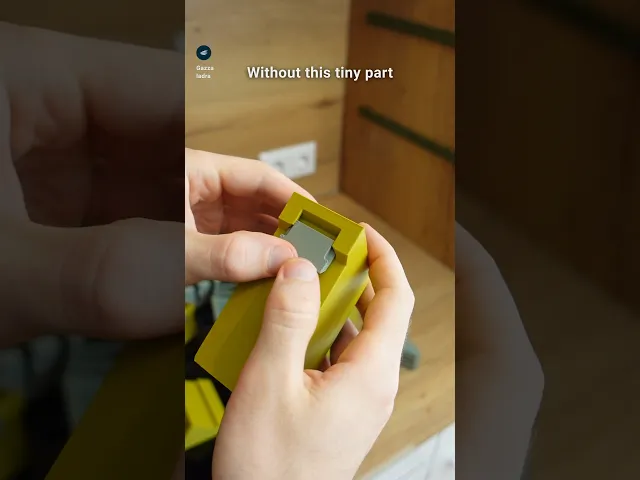

• Many parts like the boxes require the “insert”, a little extra piece that you insert into the back with a little force. This way no parts requires support!
• Print whichever parts you need and slide them on from the side
• You can reconfigure and extend the wall swiftly.

Print settings Material: PLA Print direction: files are rotated correctly Support: none Nozzle size: 0,4 mm Line width: 0,4 mm Layer height 0,2 mm Infill: 15% Build plate adhesion type: none
