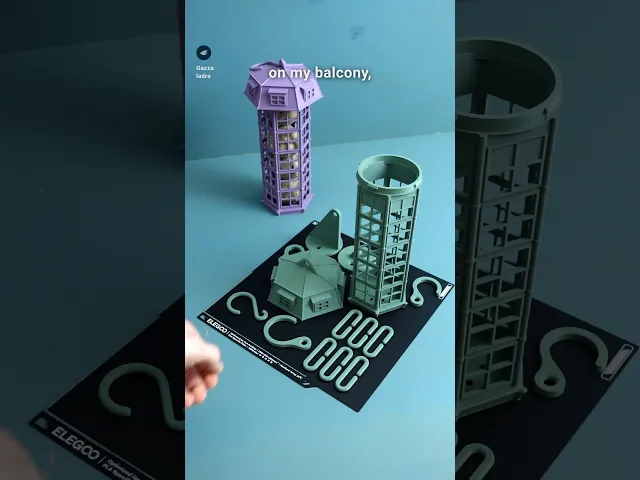

A lovely suet ball holder with a roof for rain protection. Keep the little wild birds in your garden fed over the winter with this little house-inspired feeder. The roof keeps off the worst of the rain – For the rest there are drainage holes at the bottom. The design comes with expandable chain elements so you can freely configure the mounting height I have used the V1 for over two years now and it works great. One refill lasts about 3-5 weeks.

There are several mounting options:

• A S-shaped hook with a top diameter of 30 mm for direct mounting
• Four hooks from 20 to 50 mm in diameter for branches and rails that are to be used with at least 1 chain element
• A ceiling mount to be used with screws or wall mount tape (diameter of the two screw holes 5,5 mm)
• A wall mount to be used with screws or wall mount tape (diameter of the two screw holes 5,5 mm)

Instructions

• Estimate the length of your chain if you want to print it. One chain element adds about 50 mm of length.
• Decide on your mounting option
• Print the required parts
• Insert up to four balls with the usual diameter of 50 – 60 mm. 66mm is the maximum size that fits.
• Snap-on the roof
• Assemble your mounting choice
• Place it in a visible spot where you would expect birds to go.
• Check in on the thing occasionally to refill it.
• Enjoy!

Size assembled: 120 x 120 x 314 mm Interior size: 66 x 66 x 205 mm

This is the V2

Print settings Required build volume: 130 x 130 x 210 mm Material usage: 180 g

Material: PLA Print direction: stls are rotated correctly, check images Support: none Nozzle size: 0,4 mm Line width: 0,4 mm Layer height 0,2 mm Infill: 15% Build plate adhesion type: none
