This is an expansion pack of BOXY! You will also need the Base set!

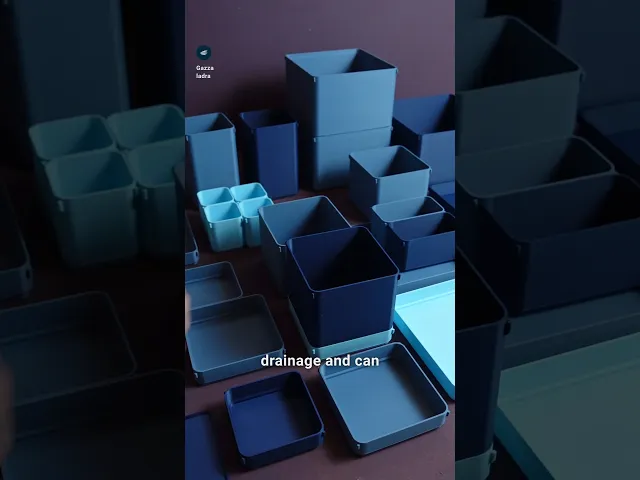

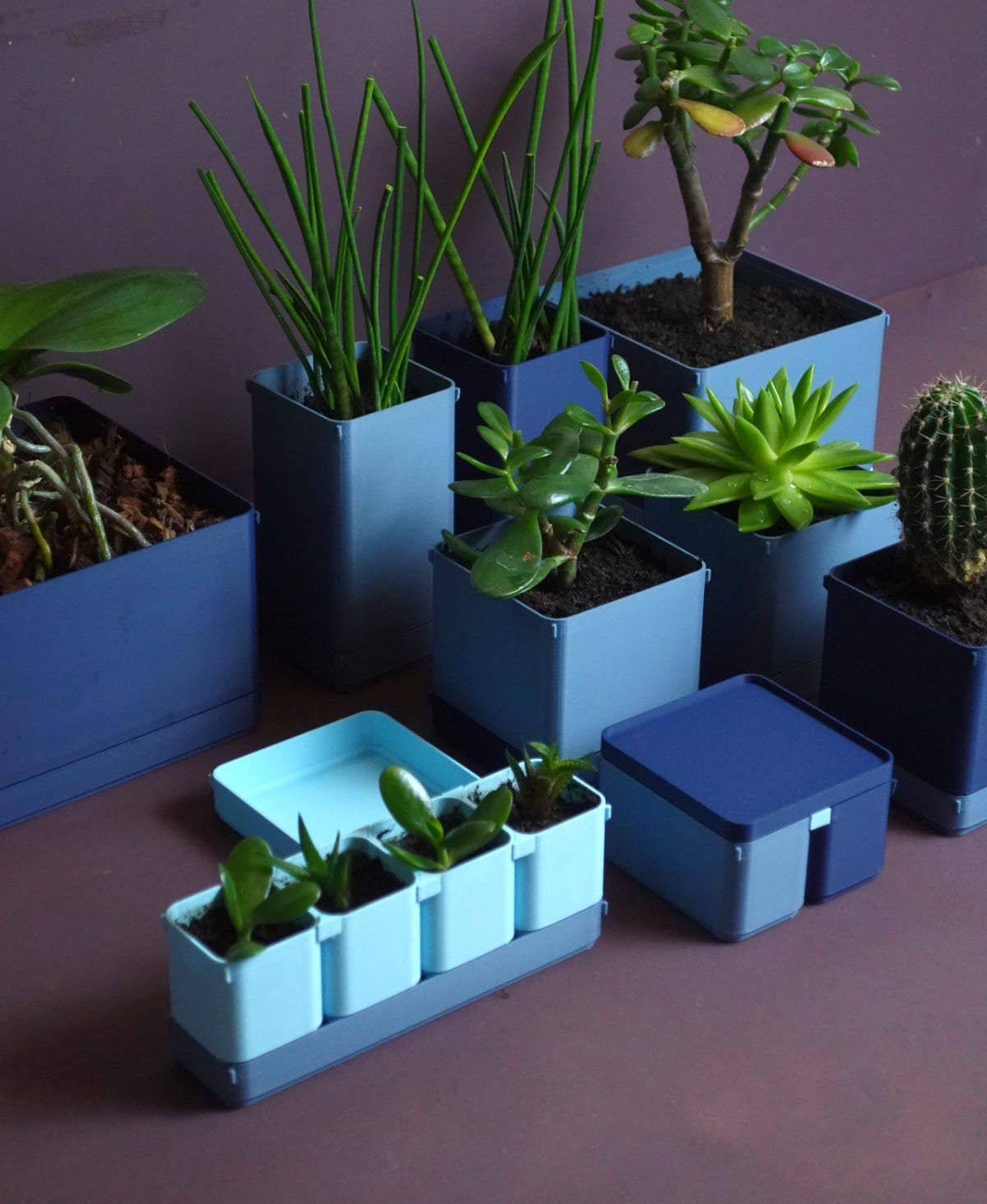

These modular and stackable planters come in thousands of sizes. They are based on the stackable box. As a drip tray you use the bases or boxes from the base set. I used them in the z-height of 20 mm.

The system is based on 10mm to the next size in all directions. There is also a easy bundle included that only has all parts in 50 mm to the next size for getting to know the system and print quick uniform boxes. The files are attached as zip folders for a quicker download. They are sorted in subfolders by z-height. There is a PDF template for smooth and easy planning included in the base set. The template also works here, especially if you want to create a nursery. Please also refer to the base set instructions to get to know the process of using this system efficiently.

The planters range from X30 x Y30 x Z30 mm to X200 x Y200 x Z200 mm.

The planters still work fine as boxes, so if you want to repurpose them or have printed too many, you can definitely do that.

Print settings Material: PLA Print direction: stls are rotated correctly, check images Support: none Nozzle size: 0,4 mm Line width: 0,4 mm Layer height 0,2 mm Infill: 15% Build plate adhesion type: none but a brim might be helpful for larger boxes if you have bed adhesion issues. For really fast printers make sure that the seam position is not right on the corner connector pieces of the boxes. Place it in the radius right next to it. It should also not be on the flat side, or the parts might get difficult to place next to each other.
