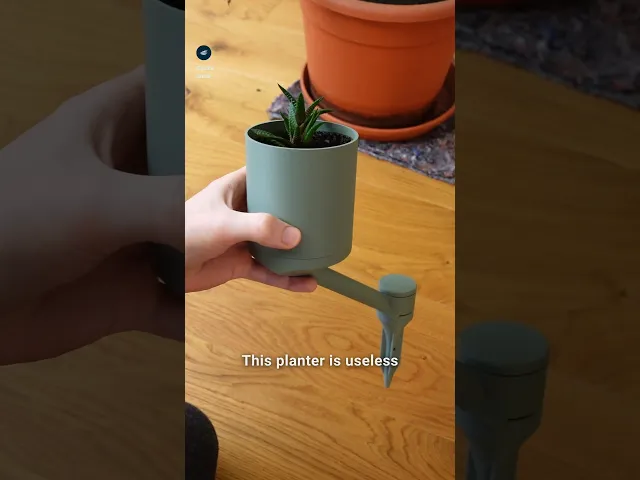

More plants in less space! This design lets you add an additional plant into a big pot.

It drains through the funnel into the bigger pot. You can rotate the planter on the funnel, and the entire assembly rotates freely around the stem. This way you can position it to get the maximum amount of sunlight while also making sure that it won’t break if you bump against it. It will just spin out of the way.

Due to the overhang at the bottom of the funnel, your print might shrink a little, for that scenario I also included a screw that is 1.5 mm shorter. Use that as backup if the default one sits too loose!

Instructions

• Print all parts
• Plant your plant into the planter
• Place the funnel on the stem and fix it in place with the screw
• Press this assembly into your bigger pot and compact the earth around it a little so it stand up right
• Add the planter
• Rotate the planter on the funnel occasionally for evenly growth

Size of the planter (only the top part): 90x90x90 mm This is the V3

Print settings Required build volume: 180 x 180 x 100 mm Material usage: 180 g

Material: PLA Print direction: files are rotated correctly Support: none Nozzle size: 0,4 mm Line width: 0,4 mm Layer height 0,2 mm Infill: 15% Build plate adhesion type: none

Only the screw Wall count: 5 Infill: 30%
