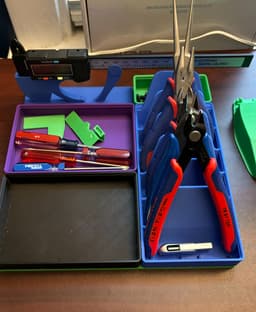

This 1x3 Gridfinity module holds a digital caliper horizontally. It is stable even without a baseplate.

It is based on this model: https://www.printables.com/model/503777-caliper-stand

@spikeon requested this 1x3 version so the head end doesn't stick out past the end of the base. So this is a remix of the 1x2 version.

It prints without supports, but I recommend watching the first layer go down to ensure the circles around the magnets all stick as expected. Once the first layer is down the rest should print with no issues.

I sliced it for PLA with 0.2mm layers. If you re-slice it, I recommend 3 perimeters and to print the outer layers first.

I added a brim to help avoid the two farthest edges from lifting up during the print.

This one was printed using PLASPORT tricolor coextruded silk filament (emerald green / purple / yellow) using my spool rotator.

Based on the Gridfinity System from Zack Freedman: https://thangs.com/designer/ZackFreedman

https://www.youtube.com/c/ZackFreedman

License: CC BY-NC-SA 4.0 https://creativecommons.org/licenses/by-nc-sa/4.0/

#gridfinity
