This model is restricted by licensing terms.

Model originally uploaded to Thingiverse at https://www.thingiverse.com/thing:5254701.

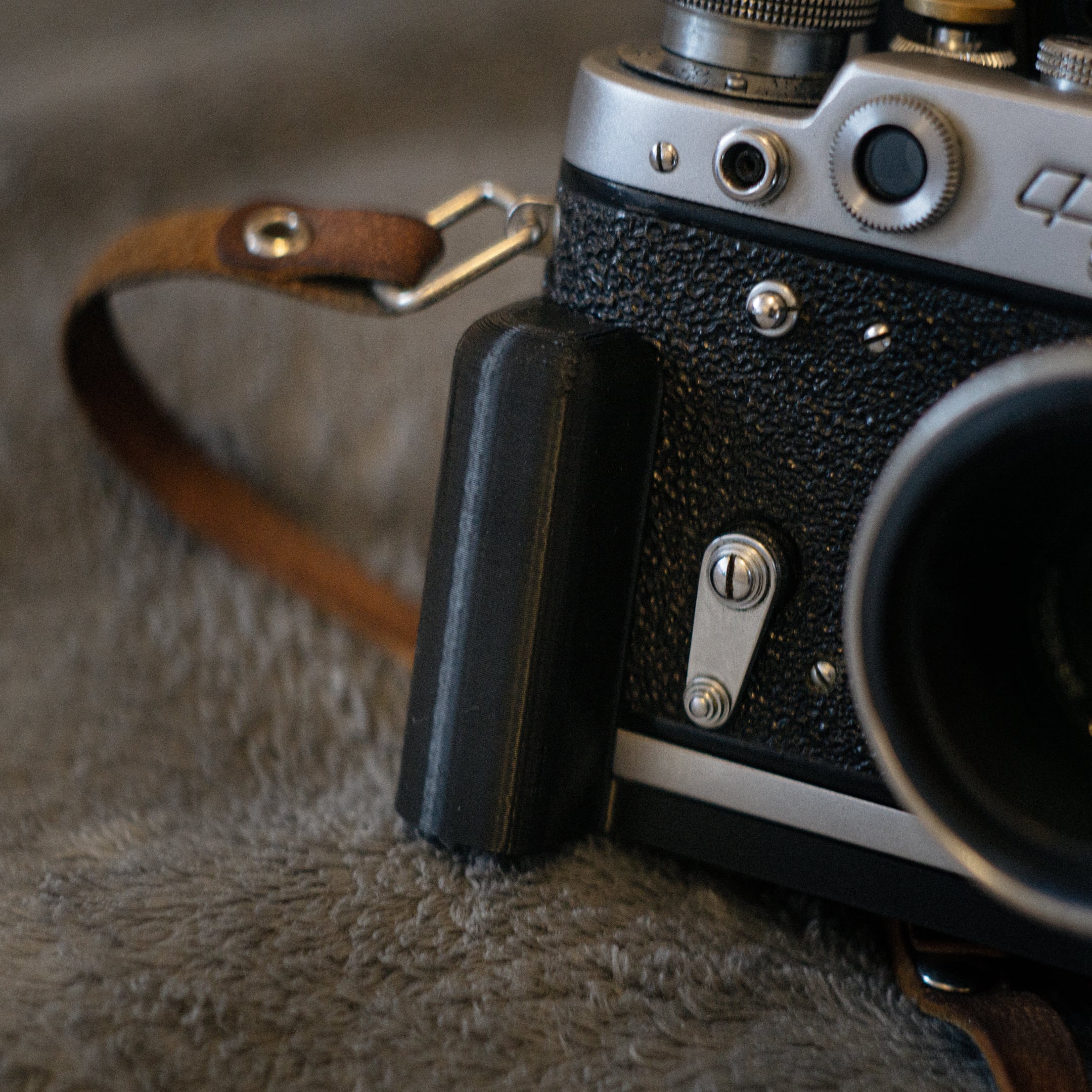

Comfortable FED-2 Rangefinder grip with 3/8" Mounting Screw.

1/4" Thread for Tripod plates.

The grip is using the 3/8" accessory/tripod head mount on the FED-2 to connect it securely. I added a 1/4" thread to be mounted on newer quick release/tripod plates.

I've printed mine in PLA but I would highly recommend to Print it in ASA for UV and Temperature resistance. Used 0.2 resolution and 25% Infill but I would recommend to print it solid for higher strength.

I'm thinking about adding a textured version or one with an inlay. If you want the CAD-files message me :)

Edit: Added a textured version Cura Project!

This Model was inspired from this post on Cults: https://cults3d.com/en/3d-model/gadget/leica-m2-hand-grip-screws-and-viewfinder-hood
