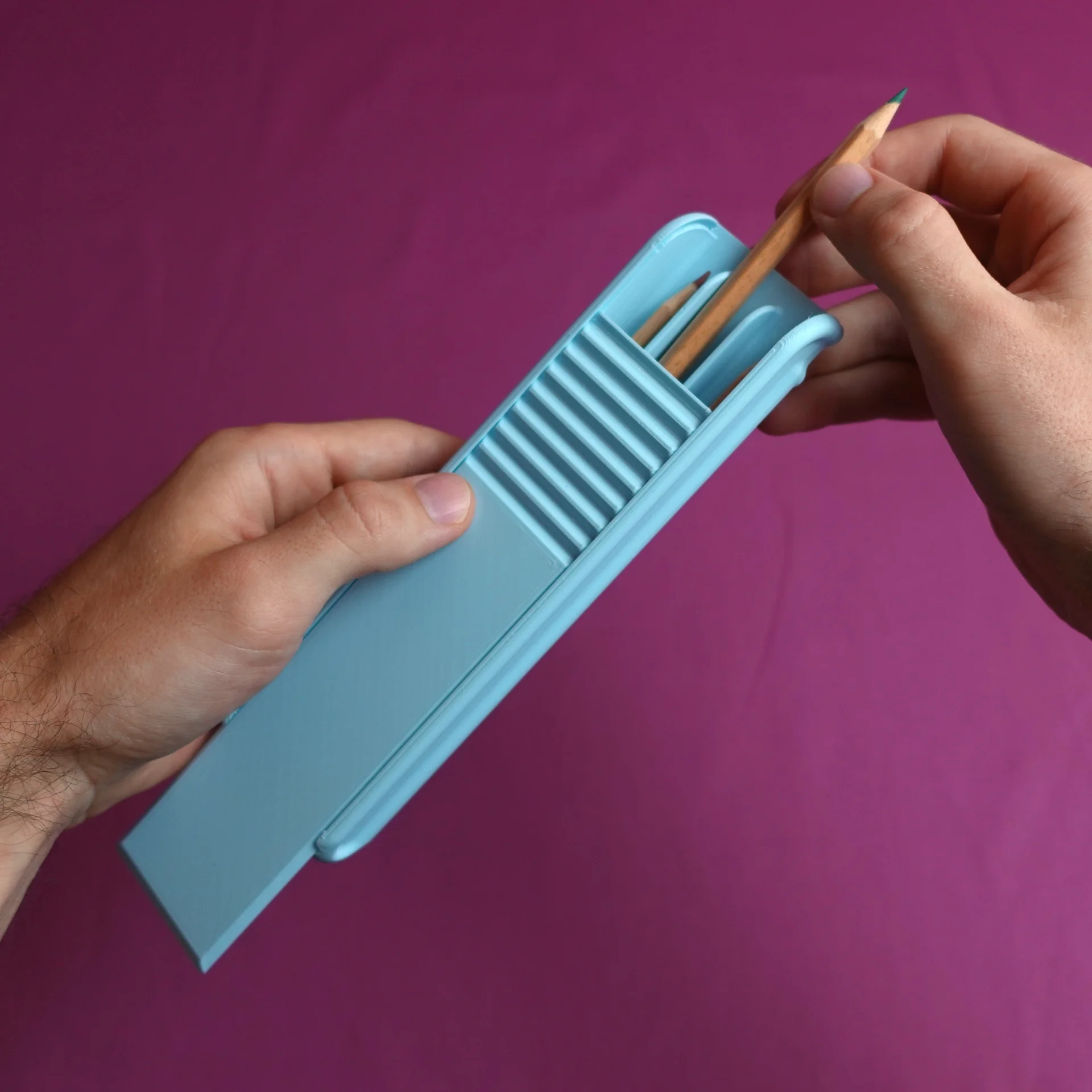

A small pencil case intended for travel. A quick-to-print and robust companion for drawing or taking notes. The Files are provided with and without the compartments. Without compartments it can also be used for other writing or drawing equipment. Before insertion bend the lid in the front a little to ease up the living hinge. Move it in and out a few times to “sand down” minor print inconsistencies.
- Size closed: 190 x 50 x 20 mm
- Inner size: 180 x 42 x 15 mm
- Maximum pencil size: 180mm length, 15mm diameter
- Compartment width: 12,6 mm
This is the V2 – The V1 is still included
Print settings Required build volume: 210x210x30mm (can fit a even smaller print bed if rotated) Material usage: 60g Print time: 5h
Material: PLA Print direction: stls are rotated correctly, check images Support: none Nozzle size: 0,4 mm Line width: 0,4 mm Layer height 0,2 mm Outer walls: 3 Infill: 15% Build plate adhesion type: none If your printer tends to warp – print the base with a brim
