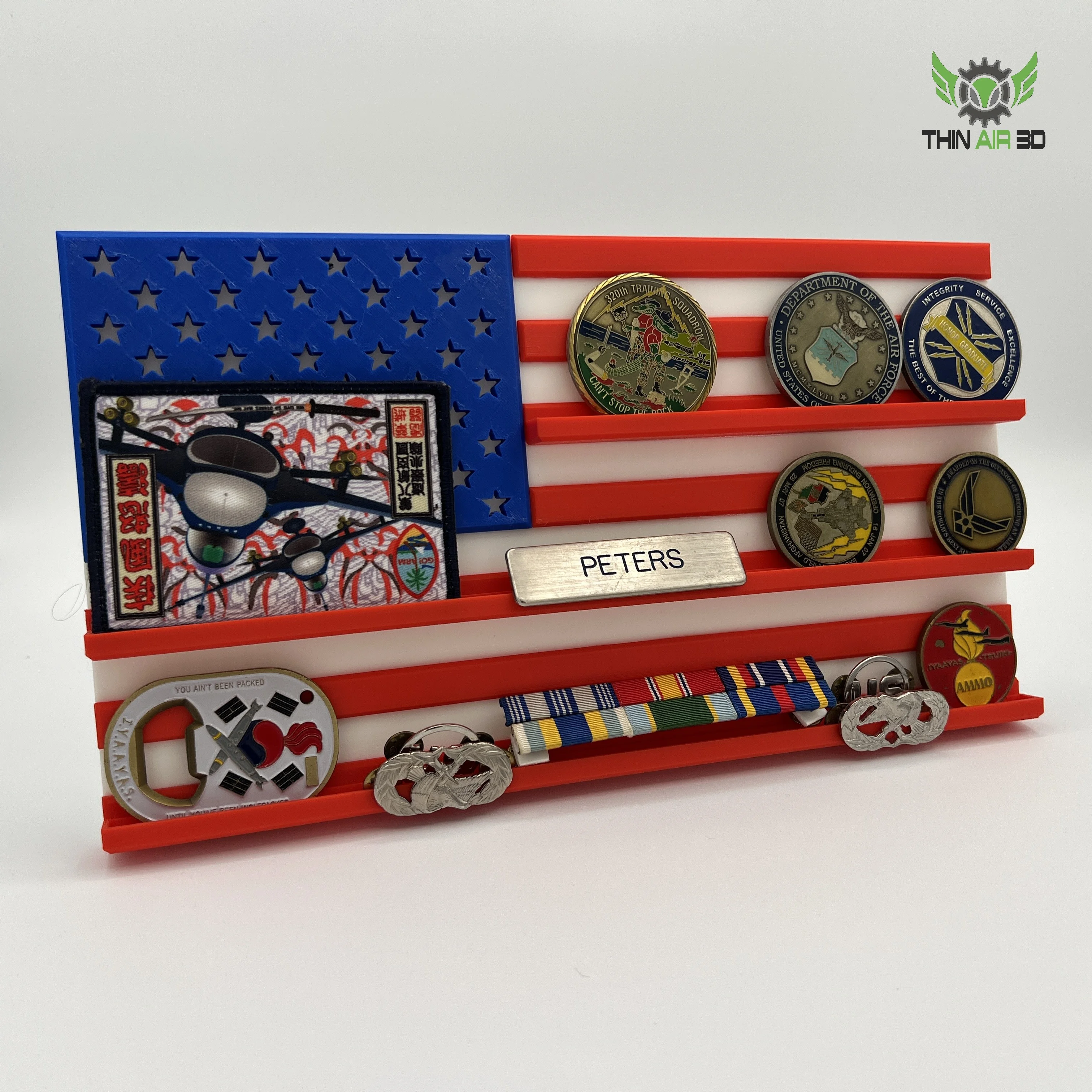

American Flag Challenge Coin Display

Hey everyone!

I've had a few member requests for new challenge coin displays. Someone specifically requested an American Flag design, so here we have it! This design prints in separate pieces and is meant to be glued together afterwards. It has holes in the back for wall mounting, and printable feet for table-top display.

*Important Note: I wanted to maximize the storage on this design so it maxes out a Bambu P1S/X1C build plate (256x256). If you have a printer smaller than that, you may need to scale the design down which could cause issues with larger coins fitting on the shelves.

I have included a Bambu .3mf file so you can just import and print the different plates. The longer pieces need to be printed at a 45 degree angle to fit, with the back plate printing on its top face.

Below you will find the print files and print instructions, but you can also find them in the archives!

As always, I hope you like the design and thank you all very much for the support!

Printing Info: These are just the settings I used to test the model, feel free to use whatever settings work best for you. FDM or Resin: FDM Scaling: Can be scaled up if you have a larger printer, can be scaled down but size of coins may limit this. Supports: None Infill/Perimeters: 15% Infill + 2 Perimeters Nozzle Size: 0.4 Layer Height: 0.2

Printing & Assembly: Print all pieces and glue together afterwards. The longer pieces need to be printed at a 45 degree angle, with the backplate printing on its top top. I have included a Bambu .3mf file with the pieces oriented and split up by color if for those of you printing this design on a Bambu printer.

File List (8):

• back plate (white) (STL)
• foot (need 2) (STL)
• shelf (long, need 2) (STL)
• shelf (short, need 1) (STL)
• stripe (long, need 1) (STL)
• stripe (short, need 3) (STL)
• star plate (blue) (STL)
• american flag coin display (.3mf)
