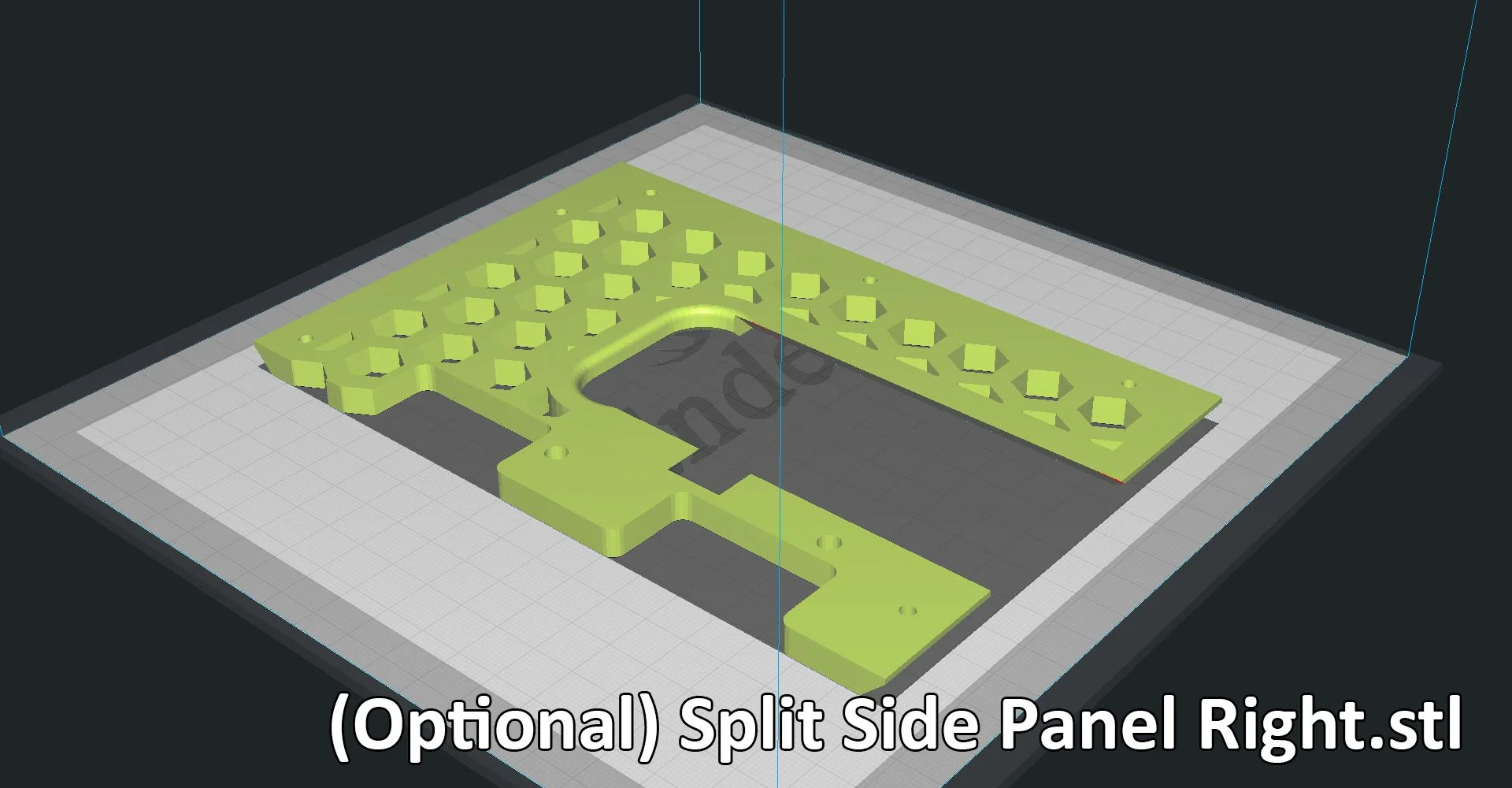

The two Split Side Panel parts are optional.
Please visit the blog post for comprehensive 3D printing and assembly instructions.
Recommended slicer settings:
- Nozzle Size: 0.4mm
- Wall/Line Width: 0.4mm
- Perimeter/Wall Count: 4
- Layer Height: 0.2mm
- Top Layers: 6
- Bottom Layers: 6
- Infill Density: 40%
- Brim: Yes
- Supports: No (with the exception of radiator clamp, which requires supports)
Tools and hardware required:
- 3D printer, or access to 3D printing service
- 3D printing filament (ABS or PETG Recommended)
- Ball-end hex driver for blind screws
- Soldering iron with B2 (Conical) tip
- Flush cutters
- M4x12mm SHCS (5 Units)
- M3x10mm SHCS (5 Units)
- M3x10mm BHCS (6 Units)
- M3x8mm FHCS (2 Units)
- M4 heat set inserts (5 Units)
- M3 heat set inserts (13 Units)
