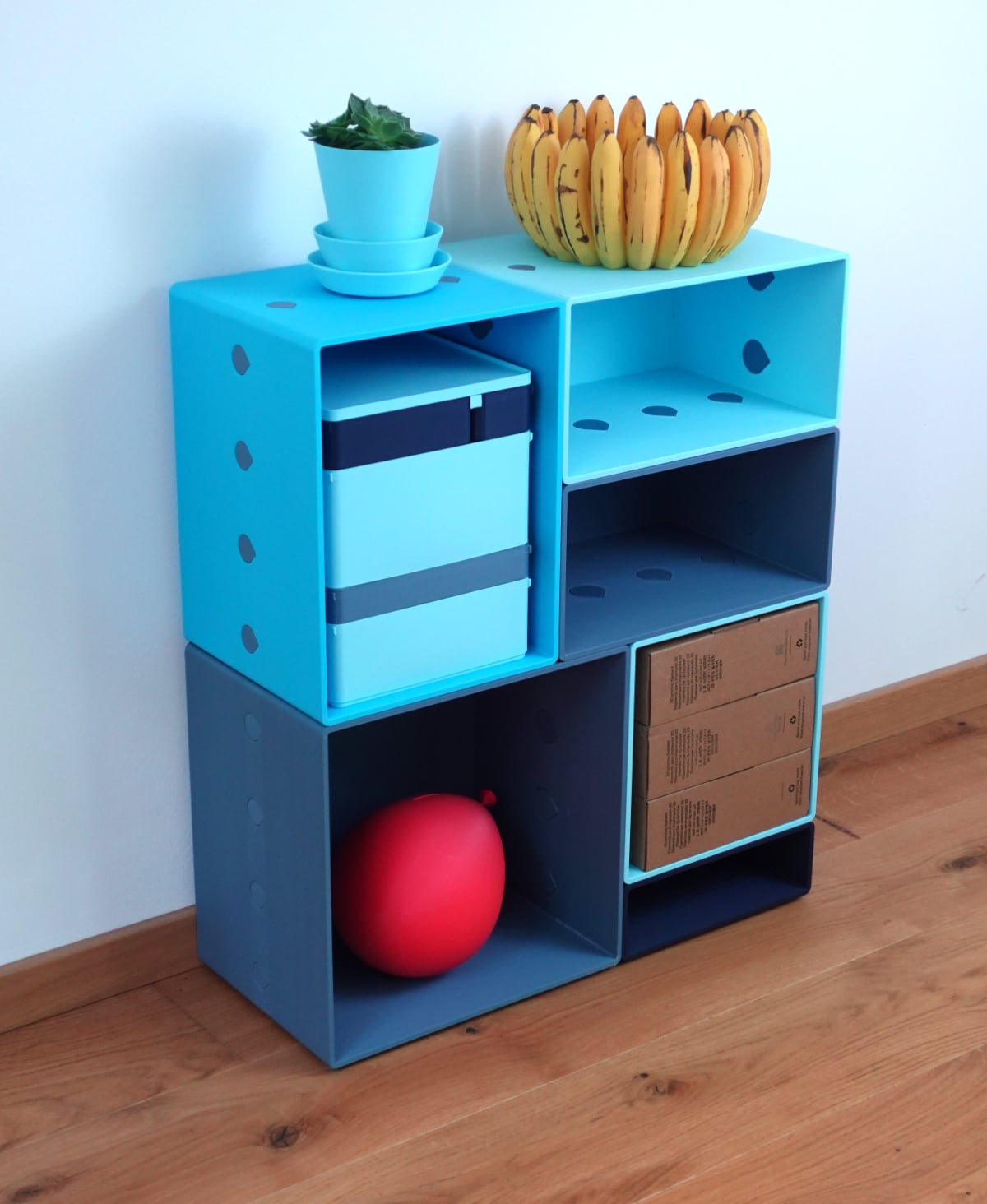

A fully 3D printed modular shelf system.

The design is based on an 80x80 mm grid and has a depth of 240 mm. All possible sizes from 80 x 80 x 240 up to 320 x 320 x 240 are included!

Instructions

• Print as many modules as you wish
• Print the according number of plugs, screws, hulls, feet and one driver
• Arrange your shelves
• Place the feet and screw them in with your driver
• Connect all modules with a hull and screw
• Place plugs in all outside facing holes

Usage You can rearrange and extend the shelf The 240 x 240 x 240 Module fits exactly 3 spools of filament and is still printable on a normal-sized print bed. Perfect for a little filament storage arrangement.

Print settings You can just print all parts in defaults settings; it will work just fine. To speed up the modules a 0.6 mm nozzle is more convenient. To give the screws a little extra strength I recommend increasing the wall count and infill a bit.

• Material: PLA
• Print direction: files are rotated correctly
• Support: none

Shelf modules

• Nozzle size: 0,6 mm advised, 0.4 works
• Wall count: 2
• Line width: 0,6 mm
• Layer height 0,3 mm
• Infill: 10%
• Build plate adhesion type: brim

All other parts

• Wall count: 3
• Nozzle size: 0,4 mm
• Line width: 0,4 mm
• Layer height 0,2 mm
• Infill: 30%
• Build plate adhesion type: none
