Door stop

This model is restricted by licensing terms.

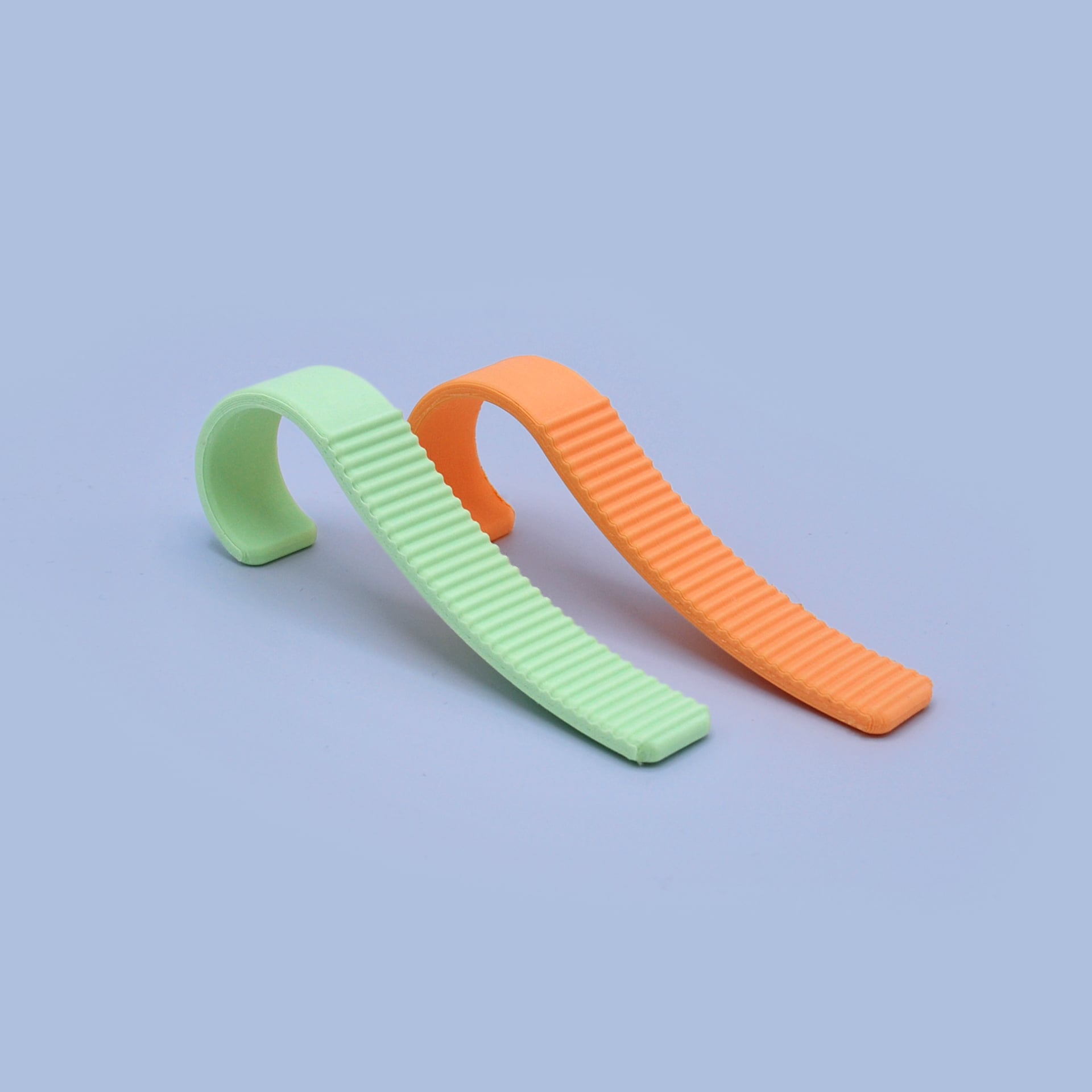

A door stop that you can hang on the door handle when you do not need it without blocking the lock. It is flexible and locks under the door when you push it down with your foot.

Size: 20 x 40 (height) x 120 mm This is the V2

Print settings Required build volume: 20 x 40 x 120 mm Material usage: 11g Print time: 1h

Material: PLA Print direction: stls are rotated correctly, check images Support: none Nozzle size: 0,4 mm Line width: 0,4 mm Layer height 0,2 mm – 0,28 mm Outer walls: 3 Infill: 30% - or more if you want it to be less flexible Build plate adhesion type: none, if you have bed bad adhesion then a brim

Community Makes (2)
Make by user
Make by user
Make by user
Make by user


Community Makes (2)
Make by user
Make by user
Make by user
Make by user

Discussions
Michael B
michaelbuchdesigns
 3d model
P
Pfred
 3d model
PrinterPrusa MK4 & MMU3
MaterialPLA
Layer height0.2 mm
Infill density30 %
SupportsNone
P
Pfred

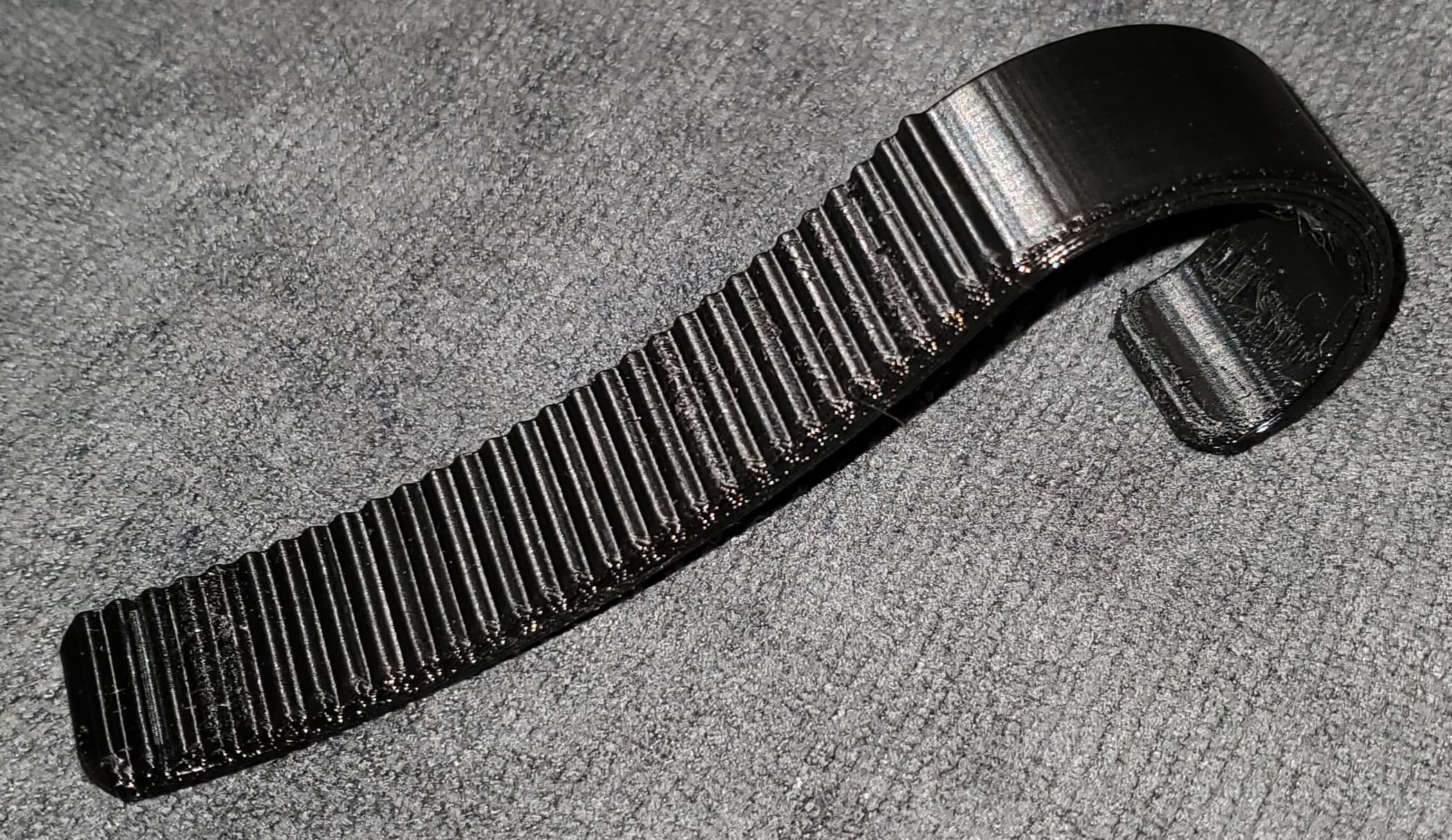

The best door stopper I found so far. Its simple, it looks nice and it actually works perfect, even on my stone floor where the others just slide away. Its by far my most useful print ;) Thanks!

Gazzaladra
Gazzaladra

Thank you! I'm glad it's working well for you!
