Mushroom shelf, key holder and hook “Amanita Muscaria”

Subscribe for access starting at $12 USD
Get access to this model and 140+ more
This model is restricted by licensing terms.

A wall mounted set inspired by the famous “Amanita Muscaria”.

Mushroom A: Hook and clothes hanger Mushroom B: Shelf, magnetic key holder and clothes hanger Mushroom C: Shelf and clothes hanger

Single and multi-color printing models are included as STL and 3MF! They work with all current and usual multi color setups.

Instructions

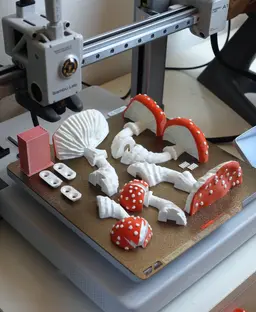

  • Print all parts
  • Insert and attach magnets into the pockets of Mushroom B. I used 20x2 mm N45 neodymium magnets but other sizes work, too. Make sure they are strong enough to hold your key. You can use double sided tape or glue to fix them in place
  • Optional: Insert the little rod connectors as positioning helpers
  • Glue both sides of all mushrooms together
  • Screw or glue the holder onto your wall. Screw and dowels are the most reliable fixation. The diameter of the hole is 5.5 mm
  • Attach the mushrooms onto the holders
  • Enjoy!

Print settings Required build volume: 130 x 130 x 100 mm Material usage for a full set in multi color: 310 g

Material: PLA Print direction: files are rotated correctly Support: none Nozzle size: 0,4 mm Line width: 0,4 mm Layer height 0,2 mm Build plate adhesion type: none

Mushrooms Infill: 15% Outer walls: 2 Top / Bottom layers: 4

Holders Infill: 50% Outer walls: 5 Top / Bottom layers: 6

Community Makes (1)
Awesome design/print!! Can't wait to paint and hang.

My only thought is that the little connecting pegs are so tiny and delicate.

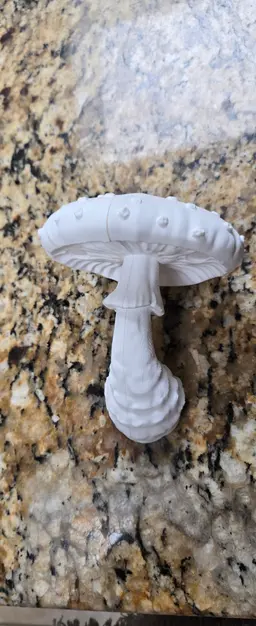

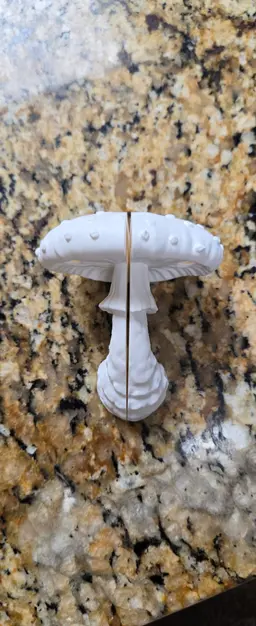

I scaled one mushroom down to 80% and couldn't get the scaled down pegs to fit in until I scaled them to 76%; when I did, they broke off inside and now I can't get that mushroom to close nicely.  I'll try glue and clamping it.  But again, this is my issue since I altered by scaling down.  (last two pics)
Awesome design/print!! Can't wait to paint and hang.

My only thought is that the little connecting pegs are so tiny and delicate.
I scaled one mushroom down to 80% and couldn't get the scaled down pegs to fit in until I scaled them to 76%; when I did, they broke off inside and now I can't get that mushroom to close nicely.  I'll try glue and clamping it.  But again, this is my issue since I altered by scaling down.  (last two pics)


Community Makes (1)
Awesome design/print!! Can't wait to paint and hang.

My only thought is that the little connecting pegs are so tiny and delicate.
I scaled one mushroom down to 80% and couldn't get the scaled down pegs to fit in until I scaled them to 76%; when I did, they broke off inside and now I can't get that mushroom to close nicely.  I'll try glue and clamping it.  But again, this is my issue since I altered by scaling down.  (last two pics)
Awesome design/print!! Can't wait to paint and hang.

My only thought is that the little connecting pegs are so tiny and delicate.
I scaled one mushroom down to 80% and couldn't get the scaled down pegs to fit in until I scaled them to 76%; when I did, they broke off inside and now I can't get that mushroom to close nicely.  I'll try glue and clamping it.  But again, this is my issue since I altered by scaling down.  (last two pics)

Discussions
Serena L
loveacactus
Awesome design/print!! Can't wait to paint and hang. My only thought is that the little connecting pegs are so tiny and delicate. I scaled one mushroom down to 80% and couldn't get the scaled down pegs to fit in until I scaled them to 76%; when I did, they broke off inside and now I can't get that mushroom to close nicely. I'll try glue and clamping it. But again, this is my issue since I altered by scaling down. (last two pics)
Awesome design/print!! Can't wait to paint and hang.

My only thought is that the little connecting pegs are so tiny and delicate.
I scaled one mushroom down to 80% and couldn't get the scaled down pegs to fit in until I scaled them to 76%; when I did, they broke off inside and now I can't get that mushroom to close nicely.  I'll try glue and clamping it.  But again, this is my issue since I altered by scaling down.  (last two pics) 3d model
