Multiboard SFP / GBIC modules holder

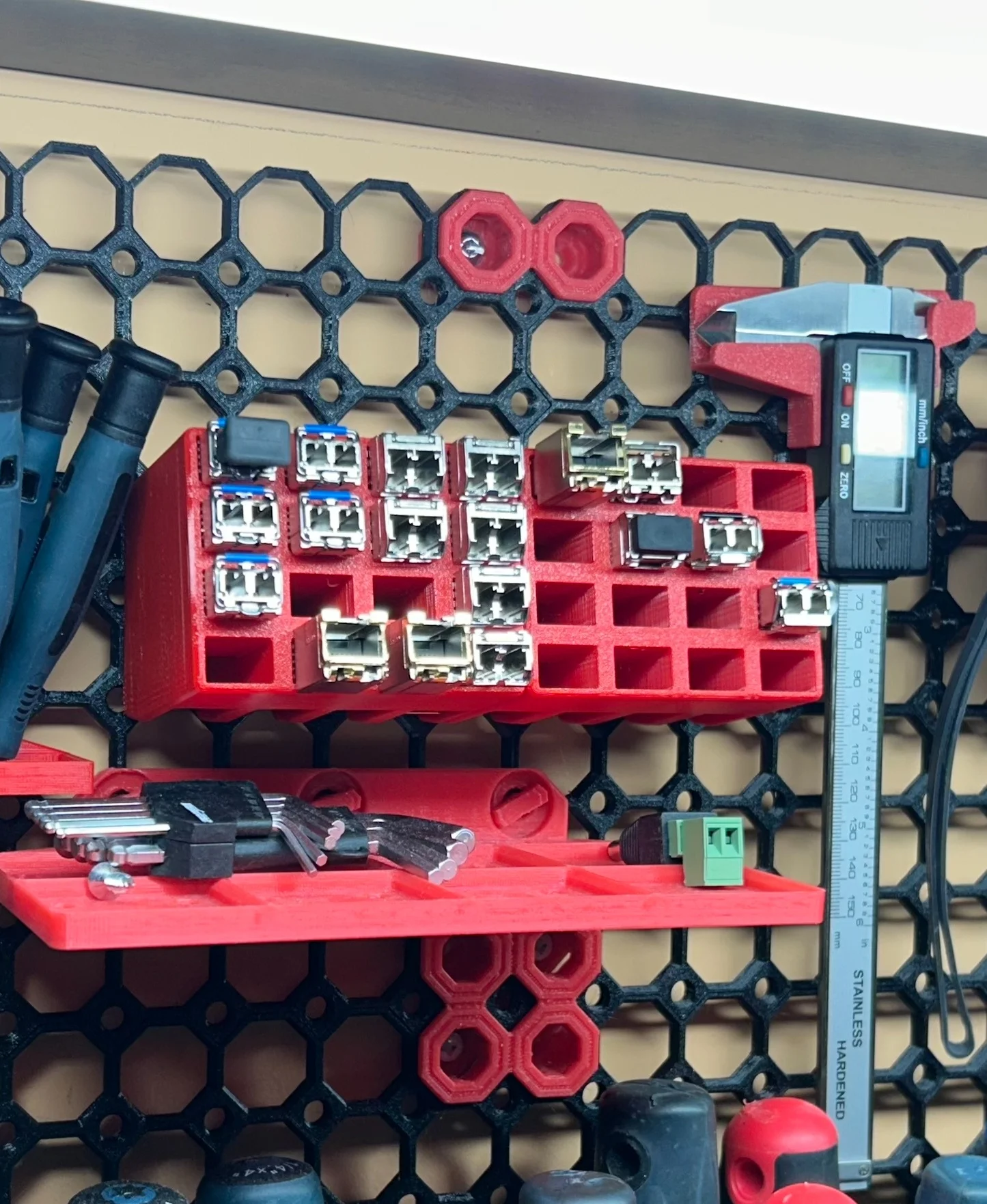

This is a a 4x4 module that holds 16 SFP modules. It is a rehash of my older SFP tray

It can attach to a multiboard using a Multipoint Attachement such as:

They will fit nicely side by side on the multiboard to make a continuous holder

It can also be used as a standalone tray.

UPDATE. v2 has the multipoint rails on the side to stabilize them when on an horizontal row. I will probably create a topper to put in a standard bin eventually.

Print it with the face flat on the bed without any support.
