Visuo XS809 propeller guard

by
kisolre
Follow
Follow
Remix Model
kisolre
kisolre
|
Image 1 of 13
Visuo XS809 propeller guard 3d model
kisolre
kisolre
|
Image 1 of 13
Visuo XS809 propeller guard 3d model
2D
3D
Makes
Visuo XS809 propeller guard 3d model
Visuo XS809 propeller guard 3d model
Visuo XS809 propeller guard 3d model
Visuo XS809 propeller guard 3d model
Visuo XS809 propeller guard 3d model
Visuo XS809 propeller guard 3d model
Visuo XS809 propeller guard 3d model
Visuo XS809 propeller guard 3d model
Visuo XS809 propeller guard 3d model
Visuo XS809 propeller guard 3d model
Visuo XS809 propeller guard 3d model
Visuo XS809 propeller guard 3d model
Visuo XS809 propeller guard 3d model
This model is restricted by licensing terms.

Model originally uploaded to Thingiverse at https://www.thingiverse.com/thing:2814384.

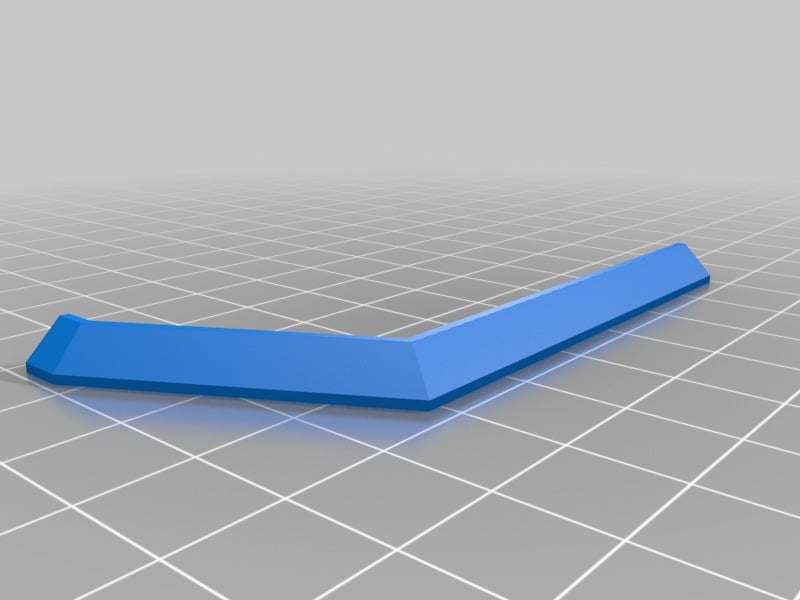

A propeller guard I designed as a spare for my Visuo XS809 drone. PropGuardVase printed in vase mode (Slic3r), 0.2mm layer height, 3 bottom layers, external_perimeter_extrusion_width = 0.7mm You will need two of them, mirrored. Guard printed in vase mode (Slic3r), 0.2mm layer height, 3 bottom layers, external_perimeter_extrusion_width = 0.7mm The lock should be printed in this orientation for the tongue to be flexible enough and dont break. I sliced it with IceSL for easy and clean supports. The four pieces are glued together with some epoxy. I printed this in PLA but if I should print more I would use PETG. You should print and use these in pairs to keep the drone balanced.

Please post your comments, makes,... :)
