Universal Trigger for Joysticks - Open Source

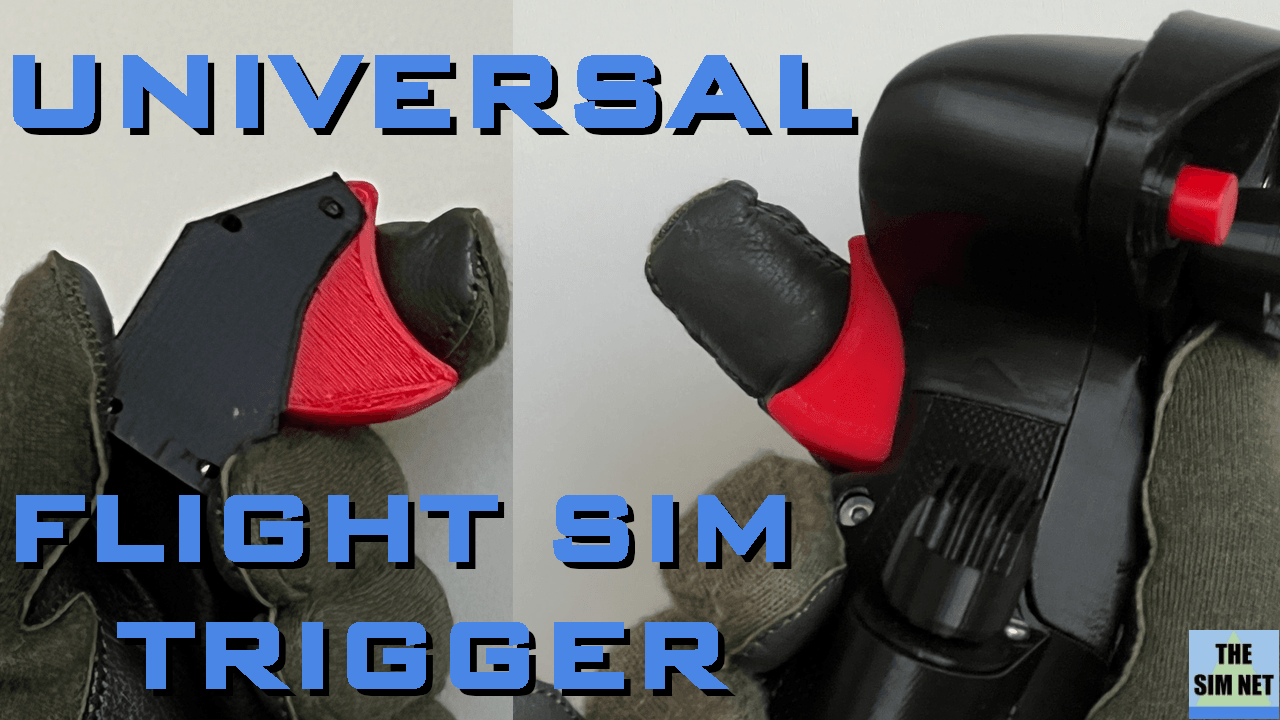

Introducing the Universal Flight Sim Trigger Module by @TheSimNet!

Featuring:

Dual or Single Stage operation Authentic operation Consistent return force Satisfying break action click Parts required:

Mini Micro Limit Switch 5A 125 250V AC SPDT 1NO 1NC Momentary Switch Snap Action Button Type 3 Pins (no lever) Torsion Spring 5mm OD or Compression spring OD 8mm (can use both for double the return force)

https://youtu.be/stQPan0KQIw
