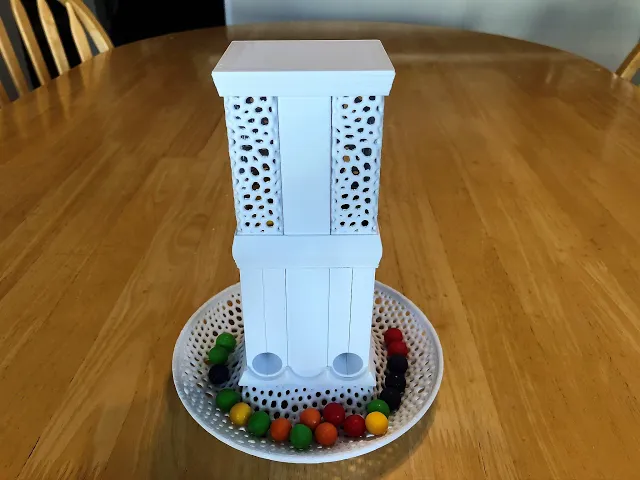

Set up your candy dispenser just the way you want it!

See here for video: https://youtu.be/759B56bt7HI

This set contains options for bases, push-button cartridges, and candy reservoirs. Everything is interchangeable. It is sized specifically for "Gobstoppers" which are between 13-14 mm in diameter. The holes are 15 mm to allow for extra clearance.

Bases

If you want all the candies to come out on the same side, print "Base Single Side." If you want to have candy coming out both sides, print "Base Double Side."

Push-button Cartridges

If you want the candy to come out on the same side as the button, print the "Self Serve" cartridges. If you want the candy to come out on the opposite side, print the "Guest Serve" cartridges. You will need to print out both the "left" and "right" for each cartridge.

You will need three cartridges to fit into the bases provided. If you want fewer than three cartridges, simply use one of the single reservoirs as a spacer (and to store extra candy!)

Print a “Spring” and “Button” for each cartridge.

Candy Reservoirs

Choose if you want a separate “Single” candy reservoir for each button cartridge, or a large “Full” reservoir that feeds into all of the button cartridges.

Files are provided for standard or spiralized printing. The spiralized models are optimized for a .8mm nozzle, but other sizes will work.

If you are printing three “Single” reservoirs, you will also need a “Connector” to hold them on the button cartridges, and a “Top Cap” to secure the tops together.

Upgrades

See here for compatible Voronoi-style pieces: https://social.thangs.com/m/216473
