Turn a simple gift into a clever surprise.

The Logical CardLock Case transforms an ordinary gift card into an interactive puzzle box with a programmable mechanical lock — printed almost entirely in one piece!

• 100% 3D Printed – no screws, pins, or metal parts
• Print-in-Place Mechanism – works right off the print bed
• Programmable 3-Digit Lock – set your own combination
• Snap-Together Design – easy to assemble, no glue required
• Compliant Mechanisms – printed springs, flexible detents, and tumblers
• Multiple False Bottom Options –
  • Simple flat insert
  • Gift Card holder
  • Gift Card + AirTag version

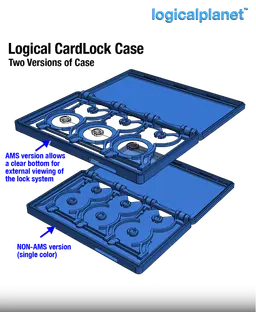

• AMS & Non-AMS Versions Included – choose between a clear-bottom or solid single-color case
• Super fun to print, assemble, and give!

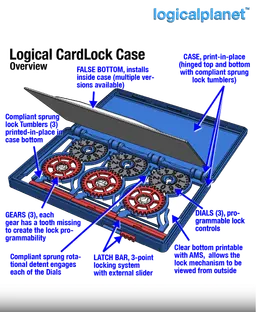

The CardLock Case uses a unique compliant tumbler system:

• Three Dials control Gears, each with one missing tooth defining its unlock position.
• When the correct combination is set, notches align with the Tumblers, releasing the Latch Bar.
• The 3-point locking system disengages, allowing the case to open.
• To lock again, simply scramble the dials.

1. Snap each Gear into place (the large inner fillet faces up).
2. Align gear notches with their matching tumblers.
3. Insert and snap in the Dials, setting your preferred combination.
4. Angle the Latch Bar into position until it clicks.

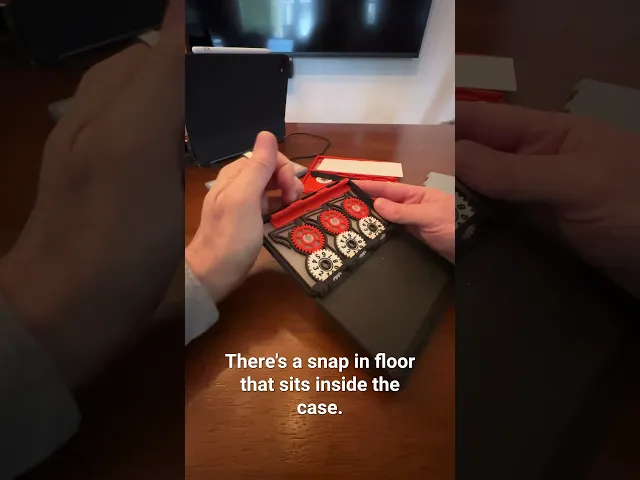

5. Install your chosen False Bottom insert — flat, gift card, or gift card and AirTag style.
6. Verify the lock slides freely when the correct code is entered.

No glue, no hardware — just geometry doing all the work.

✅ Prints fully functional off the bed — all compliant components and hinges are active immediately after printing.

• Gifting cards in a creative and interactive way
• Teaching compliant mechanism principles
• Showcasing multi-material AMS printing
• Makers who love functional prints and puzzles

This design continues the LogicalPlanet tradition of functional, educational, and fun printable mechanisms.
It’s an evolution of my earlier puzzle-based projects — this time, combining mechanical logic, compliant geometry, and elegant form.

• Use a clear AMS bottom to watch the gears move.

Each gear’s missing tooth defines its unlock position.
To change your lock code:

1. Open the case and remove the False Bottom.
2. Set the dials to the current open position.
3. Lift each gear slightly and rotate it to a new position.
4. Reinstall and verify that the latch bar slides freely.
