Large Format Fully 3D Printed Conical Bearing Turntable

A large-capacity, smooth-running, fully 3D printed Lazy Susan engineered for bigger platforms and heavier loads — no metal hardware, no supports, and no compromises.

The 280mm version expands the Version 3 radial bearing system into true large-format territory, increasing stability and load distribution while preserving the refined conical roller geometry and snap-together assembly.

Why I Designed This

As turntables get larger, small inefficiencies become big problems. Straight rollers create kinetic mismatch. Side retention causes rubbing. Loose systems get noisy.

I wanted a scalable bearing system that:

• Maintains correct rolling geometry at large diameters
• Eliminates side wall rubbing
• Reduces binding and vibration
• Prints cleanly without supports
• Snaps together without hardware

Version 3 refines roller capture, conical tilt alignment, and carrier geometry into a smoother and more stable large-format solution.

What’s New in Version 3

• End-captured conical rollers (no side wall rubbing)
• Tilted conical alignment for improved race geometry
• Larger bearing diameter for quieter operation
• Flat carrier interfaces to reduce resistance
• Redesigned lighter carrier ring with improved axial stability
• Completely flat base bottom
• Optional reduced bearing count for ultra-quiet mode

Key Features

• 280mm outer diameter
• 100% 3D printed
• Snap-together assembly
• No supports required
• Multiple top options included:
  • Fully enclosed Lazy Susan top
  • Radial bearing top with screw tabs
  • Radial bearing top without screw tabs
• Increased roller count for improved load distribution
• Quiet operation when bearings are printed in TPU
• Part of the scalable Lazy Susan v3 family

Use Cases

• Large tool trays
• Kitchen rotating platforms
• Workshop parts organizers
• Product display bases
• Photography turntables
• Rotating storage bins
• Mounted rotating platforms
• Mechanical learning demonstrations

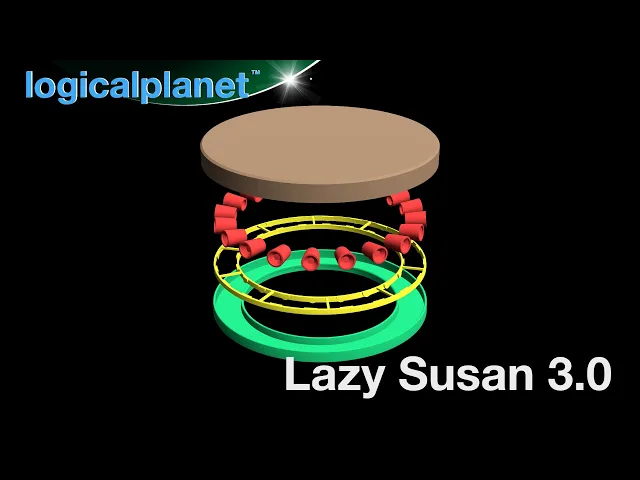

How It Works

This design uses conical rollers tilted by half the cone angle. This creates:

• A flat bottom race for smoother rolling
• A steeper top race for cleaner FDM print geometry

Rollers are retained at their ends using small indents and carrier nubs. This eliminates side rubbing and significantly reduces noise and binding.

The carrier must be installed with the connecting bars facing upward. Orientation matters.

You may assemble using:

• Full bearing count for maximum load capacity
• Half or even 1/4 of the bearings for quieter operation (reduced load capacity)

All parts print separately and snap together. No hardware required.

Important Notes – Bearings & Print Quality

• The conical bearings are specific to each size model
• Bearings from one diameter (120, 160, 200, etc.) will NOT work correctly in another size
• Do not mix bearings between models
• Always print the bearings included with that specific version

Slicer Note – Seam Settings Matter

The conical rollers perform best when the outer surface is smooth and consistent.

• If your printer produces very clean walls, no adjustment is needed
• If you notice a strong vertical seam bump, you may feel a slight rhythmic tick as the roller turns
• Switching seam placement from "Aligned" to "Random" often reduces the noticeable bump
• Reducing seam prominence improves smoothness and noise performance

A clean outer wall on the rollers makes a noticeable difference in rotation quality.

Print & Slicer Settings (Recommended Starting Point)

• Nozzle: 0.4mm
• Layer height: 0.2mm
• Walls: 4 perimeters (increase for heavier loads)
• Top/Bottom: 5 layers (increase for structural tops)
• Infill: 40% (100% for bearings)
• Supports: None required
• Wall generator: Arachne recommended

You can print all parts in PLA or other materials. Bearings operate noticeably quieter when printed in TPU.

Available Sizes

• 120mm
• 160mm
• 200mm
• 240mm
• 280mm
• 310mm
• 340mm
