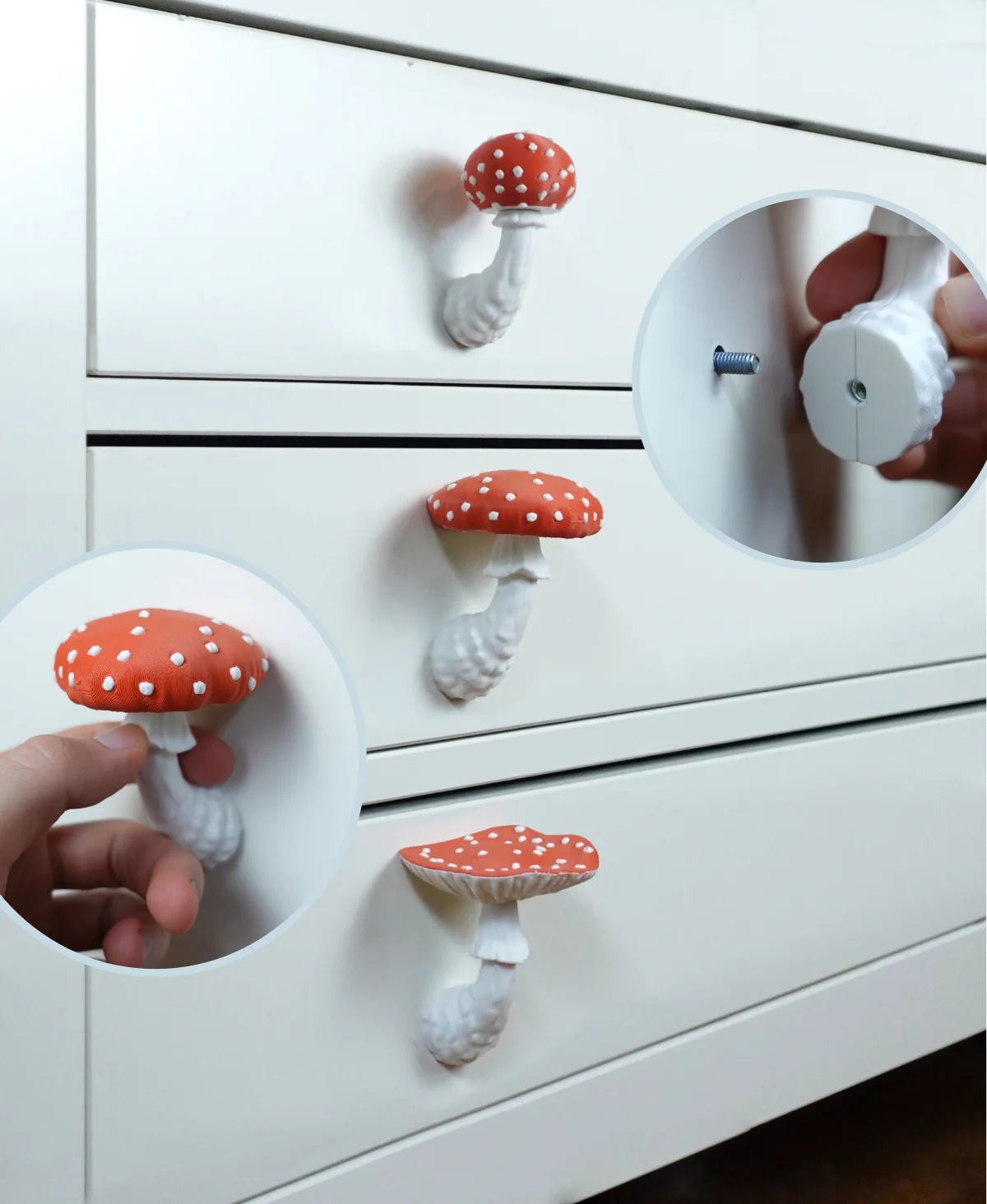

Beautiful drawer handles inspired by the famous “Amanta Muscaria”. You can mix and match all three heads and stems.

Single and multi-color printing models are included as STL and 3MF! They work with all current and usual multi color setups.

What you need

• The prints
• Glue
• Flat head M4 screws. The screws can be inserted into the print up to 10 mm. Choose your length by adding 5 -10 mm onto your drawer front thickness. M4x25 is the most common drawer handle screw size.
• M4 Hex Nuts (according to DIN934)

Instructions

• Print all parts
• Insert the hex nut into one side of the stem
• Apply glue and Press on the other side
• Apply glue to the top connector part and press the head on
• Insert the screw into your drawer from the back and attach the mushroom from the front.
• Tighten the screw until the mushroom sits firm.

Print settings Material: PLA Print direction: files are rotated correctly Support: none Nozzle size: 0,4 mm Line width: 0,4 mm Layer height 0,2 mm

Heads

• Outer walls: 2
• Infill: 15%
• Build plate adhesion type: brim
• Stems

Outer walls: 3

• Infill: 20%
• Build plate adhesion type: none
