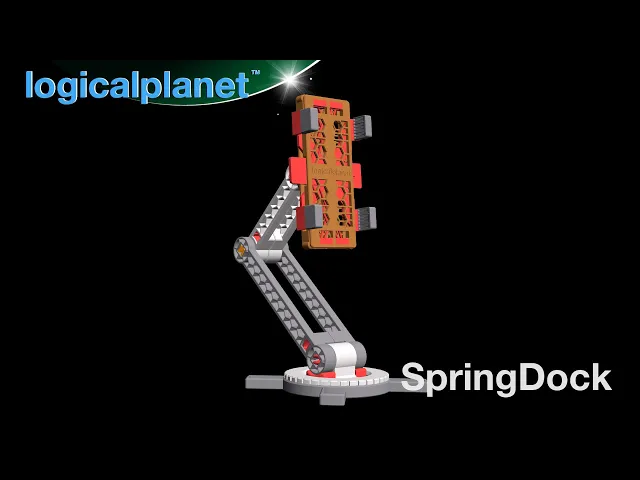

SpringDock: Phone Edition
Snap-in. Snap-out. All grip. No hassle.

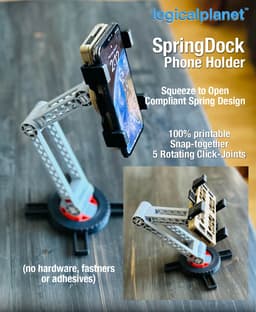

This is the SpringDock: Phone Edition — a 100% 3D-printable, snap-together phone holder built with compliant spring arms that grip your phone securely with a simple squeeze-and-release motion. Whether you’re at your desk, in bed, or anywhere else you need a quick dock for your device, this design makes it effortless.
The spring mechanism is printed directly into the body — no metal springs or extra hardware required. Just print, snap it together, and it’s ready to use.
Features:
- Fully 3D printable — no screws or metal parts
- Secure compliant spring grip holds your phone with ease
- One-handed operation: squeeze to open, let go to dock
- Rotatable design for portrait or landscape viewing
- Mountable on a base or attachable to the ClampDock system
Great for desks, bedside tables, studio setups, and anywhere you want your phone easily visible but out of the way.
This is the first in the SpringDock series — future editions may include tablet holders and more.
Designed for easy printing and reliable function. Functional, fun, and a perfect fit for the modular ClampDock ecosystem.
Important:

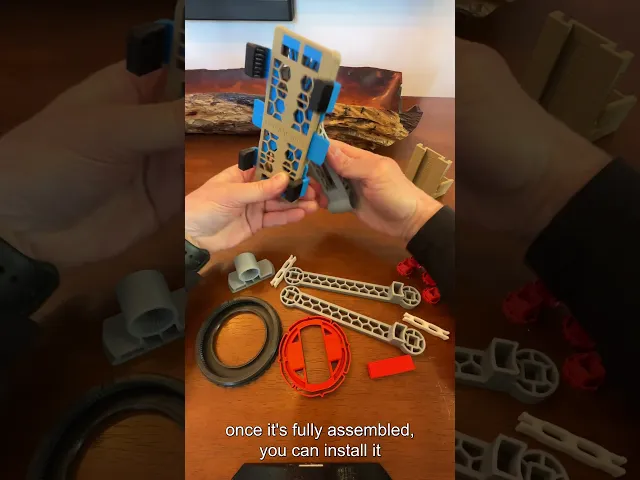

Please see the linked video for assembly instructions (the long video is better).
Print Settings:
- Material: PLA
- Nozzle: 0.4mm
- Layer Height: 0.2mm
- Line Width: 0.4mm
- Wall Count: 4 (1.6mm)
- Top and Bottom Layer Count: 5
- Detect Thin Walls: ON
- Wall Generator: Arachne
- Infill: 40% (Cubic)
- Support: None required
- Print Orientation: As per the STL/3MF files
Related Links:
The ClampDock is available here… https://than.gs/m/1256833
For more details and other designs, visit my blog: logicalplanet.com
Revisions and Updates:
I regularly update and improve my designs. Check back for the latest revision notes or if you encounter any issues with the model.
