SW BTT Pi TFT50 Mount.stl

** Made some edits to the design so you can now use the original M2 screws that come with the screen. I also adjusted the gap between the 2 mounting holes as they did not align 100%.

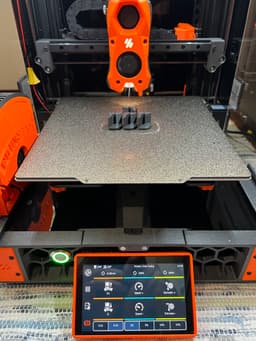

This is a screen mount for the BigTreeTech Pi TFT50 touch screen to be mounted on the Voron Switchwire or the Ender 3 conversions. This screen is powered directly from the Raspberry Pi ribbon cable and best of all its plug and play - no 3rd party drivers need to be installed. You will need to purchase a longer ribbon cable depending on where the Pi is mounted under the printer. There are no drivers/software that need to be installed!

Assembly

1. Pass the ribbon cable through the cutout if the Frame Rear and attach it to the screen. Its a good idea to power on the Pi to be sure the cable is attached correctly and that the screen powers up and displays correctly.
2. The screen will need to be mounted to the frame using 4 x M2x3 screws that comes with the screen.
3. Use 2 x M3x20 screws to mount it to the grill from the inside.
4. ENJOY!

Please help me and upload a make if you are happy with my design :)
