Thumb Wheel Ratchet Handle

by
b1tshifter
Follow
Follow
Remix Model
Like
b1tshifter
b1tshifter
Image 1 of 10
Thumb Wheel Ratchet Handle 3d model
2D
3D
Makes
Thumb Wheel Ratchet Handle 3d model
Thumb Wheel Ratchet Handle 3d model
Thumb Wheel Ratchet Handle 3d model
Thumb Wheel Ratchet Handle 3d model
Thumb Wheel Ratchet Handle 3d model
Thumb Wheel Ratchet Handle 3d model
Thumb Wheel Ratchet Handle 3d model
Thumb Wheel Ratchet Handle 3d model
Thumb Wheel Ratchet Handle 3d model
Thumb Wheel Ratchet Handle 3d model
This model is restricted by licensing terms.
0 Likes1 DownloadsMarch 11, 2023
This model is restricted by licensing terms.


Model originally uploaded to Thingiverse at https://www.thingiverse.com/thing:5276361.

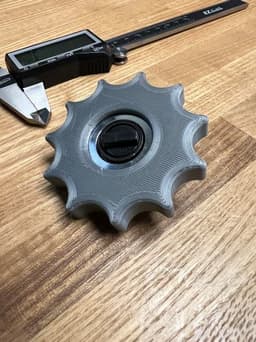

I ordered a rubber-handled thumb wheel ratchet of Amazon (third party seller, I think) and received the metal-handle ratchet. Since I wanted to use this on my printer nozzle, I wanted a little heat-insulation, so I quickly designed this handle.

This is a very tight fit - I had to use a C-clamp to press the two together. If that doesn't work or it's too loose, scale the x & y directions a bit. This was designed around Performance Tool Part W36125, but could probably be scaled to fit your model. The Performance Tool ratchet has an outer-diameter of 38 millimeters, and so this handle has an inner diameter exactly that, hoping the knurled handle will bite into the PETG

I suggest printing in PETG as PLA is more brittle and will need a little more clearance.
