Multiboard Corner and Side Mounting Snaps

by
TwinMoons
Follow
Follow
Remix Model
TwinMoons
TwinMoons
|
Image 1 of 5
Multiboard Corner and Side Mounting Snaps 3d model
TwinMoons
TwinMoons
|
Image 1 of 5
Multiboard Corner and Side Mounting Snaps 3d model
2D
3D
Makes
Multiboard Corner and Side Mounting Snaps 3d model
Multiboard Corner and Side Mounting Snaps 3d model
Multiboard Corner and Side Mounting Snaps 3d model
Multiboard Corner and Side Mounting Snaps 3d model
Multiboard Corner and Side Mounting Snaps 3d model

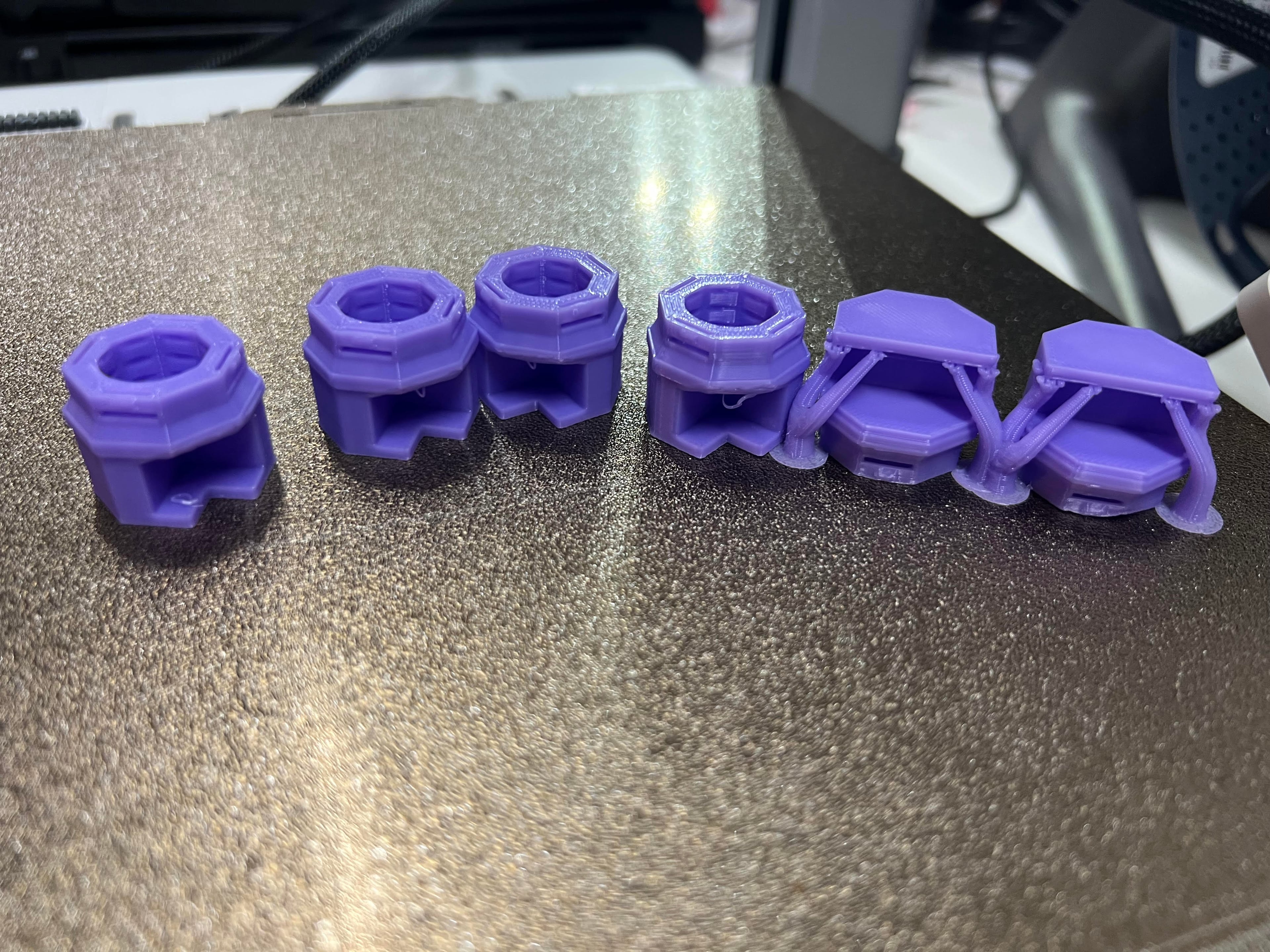

I originally made this for someone who requested it on Reddit, but I figured someone else may also find it useful! These are custom Multiboard snaps. One is a corner mount and the other is a side mount. The mounting gap is 8.5mm. The corner mount does not need any supports (it's in the correct orientation on the plate), and for the side mount, I recommend slim tree mounts on the plate only. I have tested that and it worked fine for me. If you need these with a different gap size, please let me know and I'll be glad to customize it. Also, the spacing of these is limited to the Multiboard grid, but I can possibly extend the mounts to allow for further flexibility. I'm new to 3D printing and modeling, so any feedback is greatly appreciated! Also, I try to stream/upload my print jobs on my YouTube channel at https://youtube.com/@IDreamOfOkra, so please check it out!

For personal use, not for commercial use.


2 Likes5 DownloadsOctober 22, 2024
