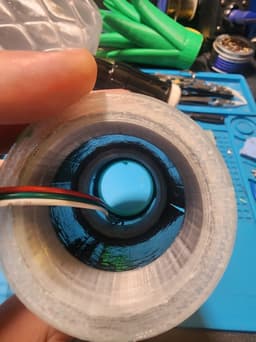

These Rings allow you to roll a 16x16 LED matrix into a cylinder for advanced visuals or even creating a 3D pixel map.

Designed around the BTF-LIGHTING WS2812B RGB 5050SMD Individually Addressable Digital 16x16 256 Pixels 6.3in x 6.3in LED Matrix Flexible FPCB.

Use the "Base" file for the top and bottom. Use the "Mid" rings for supporting the middle of the matrix. Best to glue one base on, then slide the outer ring over the LEDs. Then insert the inner ring. Finish by installing the second base.
