2024-07-26 Update: This is now version 2.1 of this knife which now has improved geometry to help keep the blade closed and or opened as well as a detent on the closed side to minimize the chances of it partially opening in your pocket.

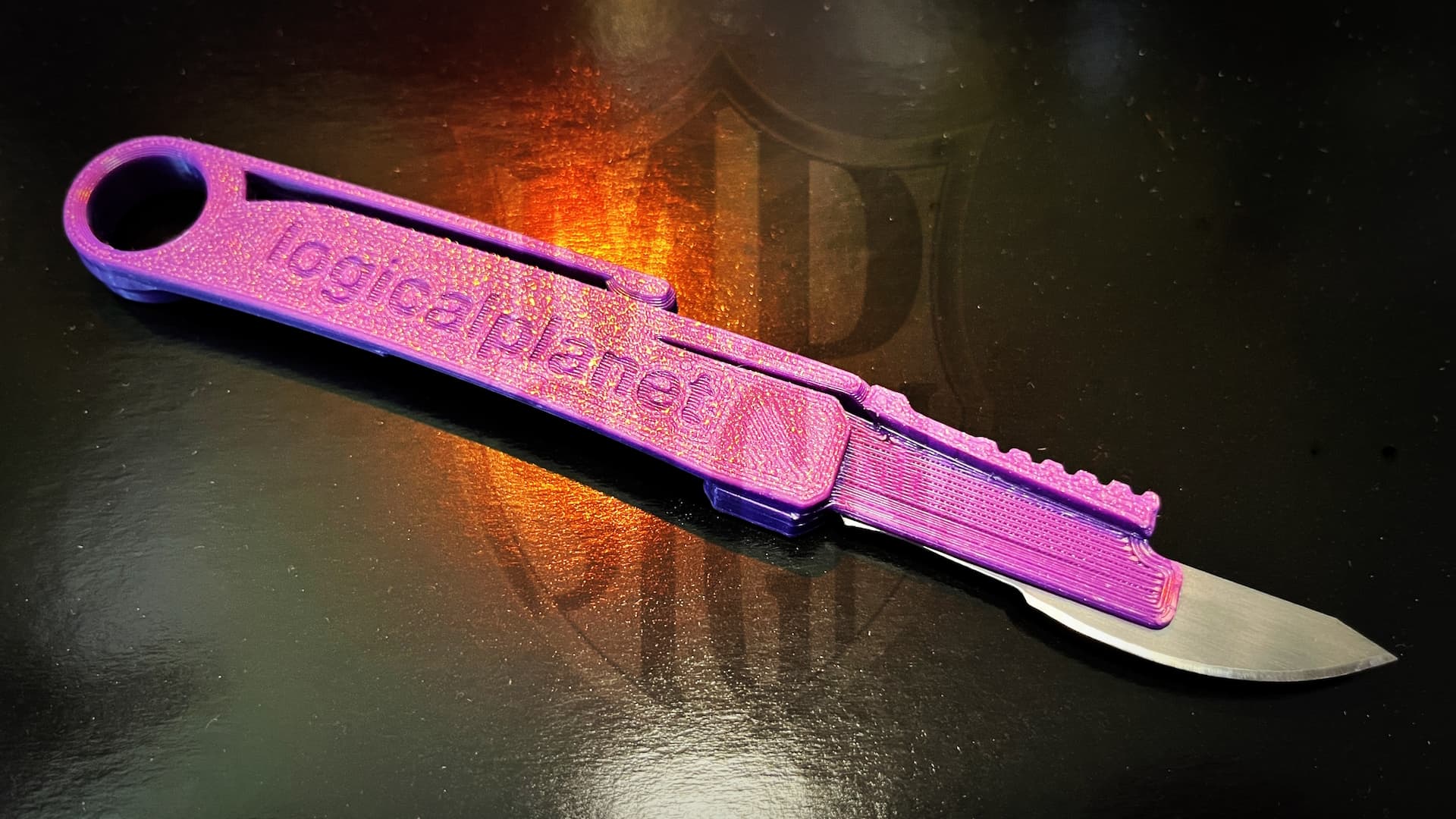

This folding scalpel handle is stronger and stiffer and can accommodate all #4 scalpel handle blades (up to 60mm in total length). I have tested it with #18, #20, #21, #22, #23, #24 and SwitchBack blades.
The pivot utilizes an offset radii design allowing it to print easily and still rotate tight in the open and closed positions. Check it out!
100% printed - no hardware, fasteners, or adhesives required. No support required
Print Settings:
I have tested this design on multiple printers using PETG, ABS+ and PLA. Print settings can vary significantly between users so please note my settings and let me know if you are having difficulty. I am committed to helping everyone get great print results to the extent I can so please contact me if you are having issues.
Nozzle = 0.4mm Layer height = 0.2mm Line width = 0.4mm Wall count = 4 (1.6mm) Infill = 40% Ironing = ON
I also now have an XL version of this knife specifically for the very large #60 scalpel blades. I do not recommend using the XL knife with anything other than the #60 blade. https://than.gs/m/1110703
See my blog for more details at… https://www.logicalplanet.com/
