Dots Planter

This model is restricted by licensing terms.

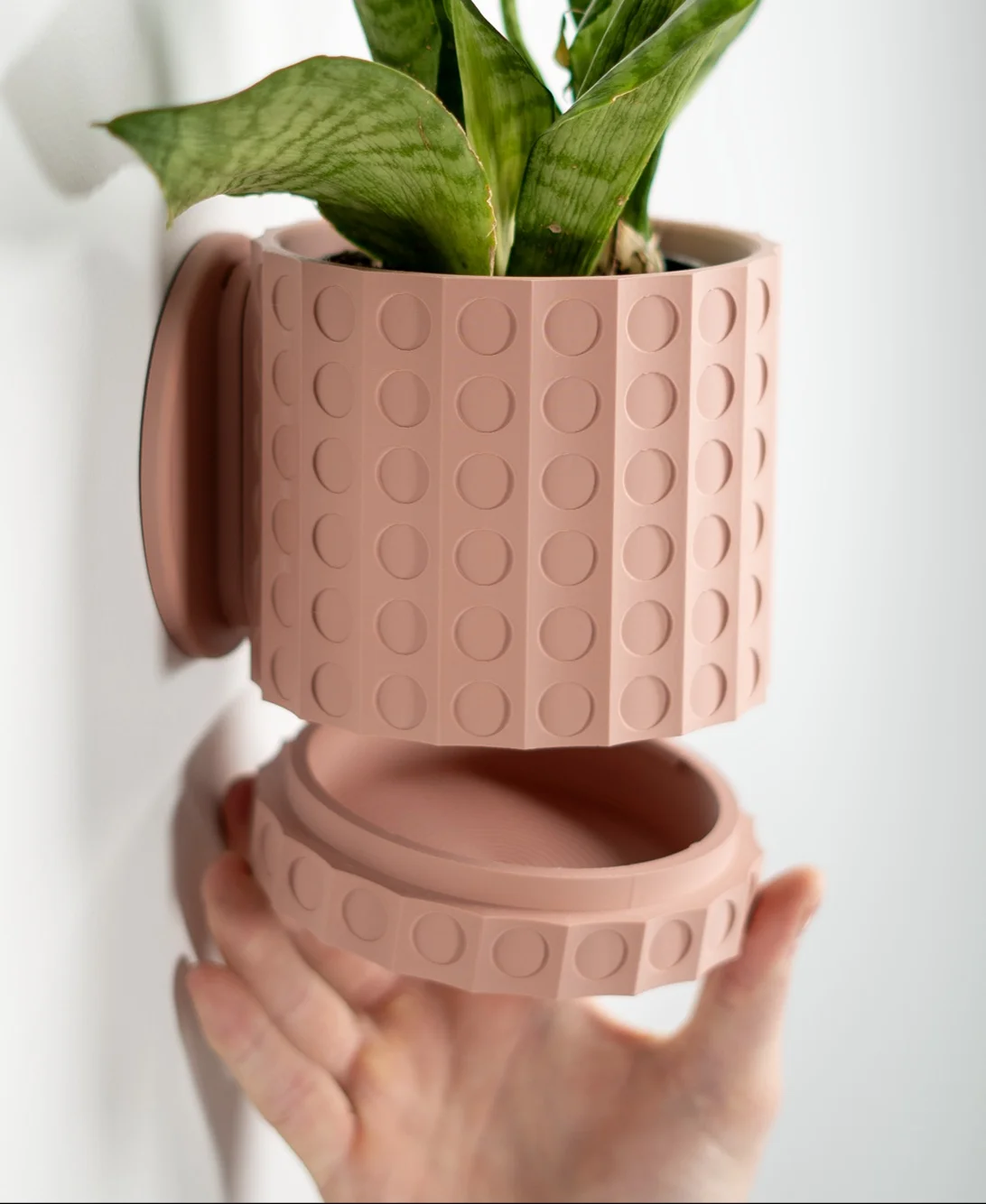

Another planter with a twist off drip tray! I have a whole bunch more of these designed in different ways that I'll be releasing soon. Let me know if you have any suggestions on new designs!

Supports None needed!

Scaling I wouldn't recommend scaling this one since it perfectly fits the command strips and the screw holes are designed specifically for #10-12 x 1-1/4 in anchors and screws.

Orientation The planter and tray should have their bottoms on the build plate. All mounts should have the sliding dovetail facing up.

Print Settings

  • .2mm layer height
  • 15% grid infill
  • 2 walls
  • Wall order: Outer/inner

Filament & Hardware

  • Filament: Hatchbox Matte Terracotta PLA
  • Command Medium Picture Hanging Strips
  • #10-12 x 1-1/4 in screws

Filament and non 3D printed items for this model can be found on my Amazon Storefront, linked here: https://hendricks.design/links/


Discussions
R
Rza

Looks good!!

I get this error when opening up the 3MF file:

The 3mf was generated by an old version of Bambu Studio, loading geometry data only.

Just opens up with 1 build plate and the rest of the items loose and none of the settings.

Cheers
