Model originally uploaded to Thingiverse at https://www.thingiverse.com/thing:2768365.

Remix of "Flat_stand.stl" from "Modular Mounting System" by yyh1002, used under CC BY 3.0.

The connector has been raised by 5mm to allow an M5 wing nut to be fitted.

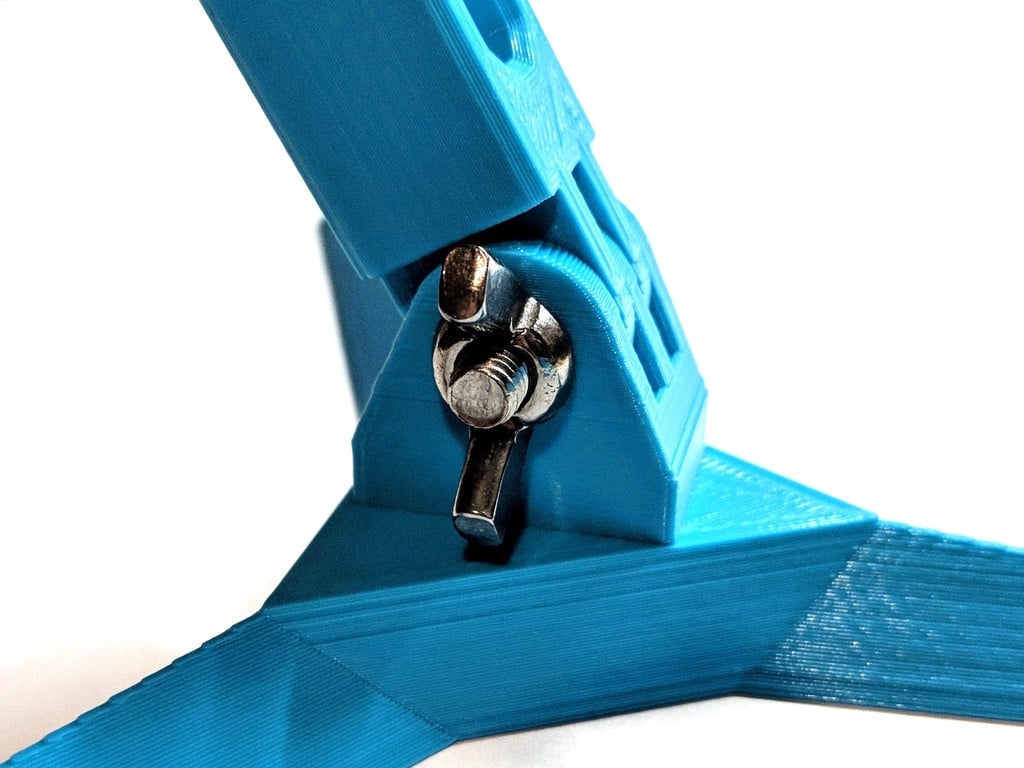

Wing nut shown in the picture measures 21.5mm at the widest point.

Please see my make for additional pictures.

This design is completely free and shared under a permissive license. Your support is hugely appreciated.

Did you know?

Some of our designs cannot be found on Thingiverse. If you are looking for more, check out our premium projects:

https://codeandmake.com/premium

Versions

• 1.1 (9 Dec 2020) - Rotated into printing orientation
• 1.0 (24 Jan 2018) - Initial version

Printing

• Resolution: 0.1mm - 0.2mm
• Infill: 10 - 25%
• Supports: Doesn't Matter
• Rafts: Doesn't Matter

Attribution

This work, "Modular Mounting System Flat Stand for use with M5 Wing Nut", is a derivative of "Flat_stand.stl" from "Modular Mounting System" by yyh1002, used under CC BY 3.0.

License

"Modular Mounting System Flat Stand for use with M5 Wing Nut" is licensed under the CC BY license by Code and Make.
