Faucet Stop.stl

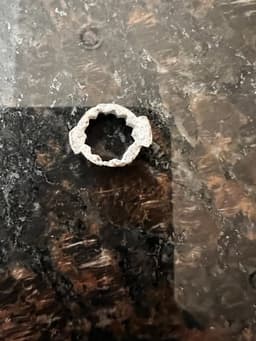

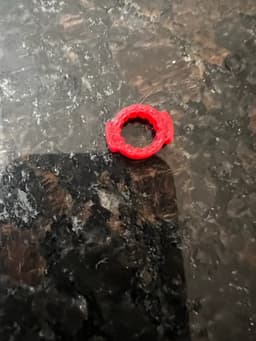

Mechanism for stopping handle rotation on a bathroom faucet. This piece is keyed to the splines and has tabs on either side that stop rotation when they contact a tab in the housing. I didn't have calipers, when I was designing, so I guessed a size and matched by scaling x/y on the slice. I think 120% size was the one that fit.
