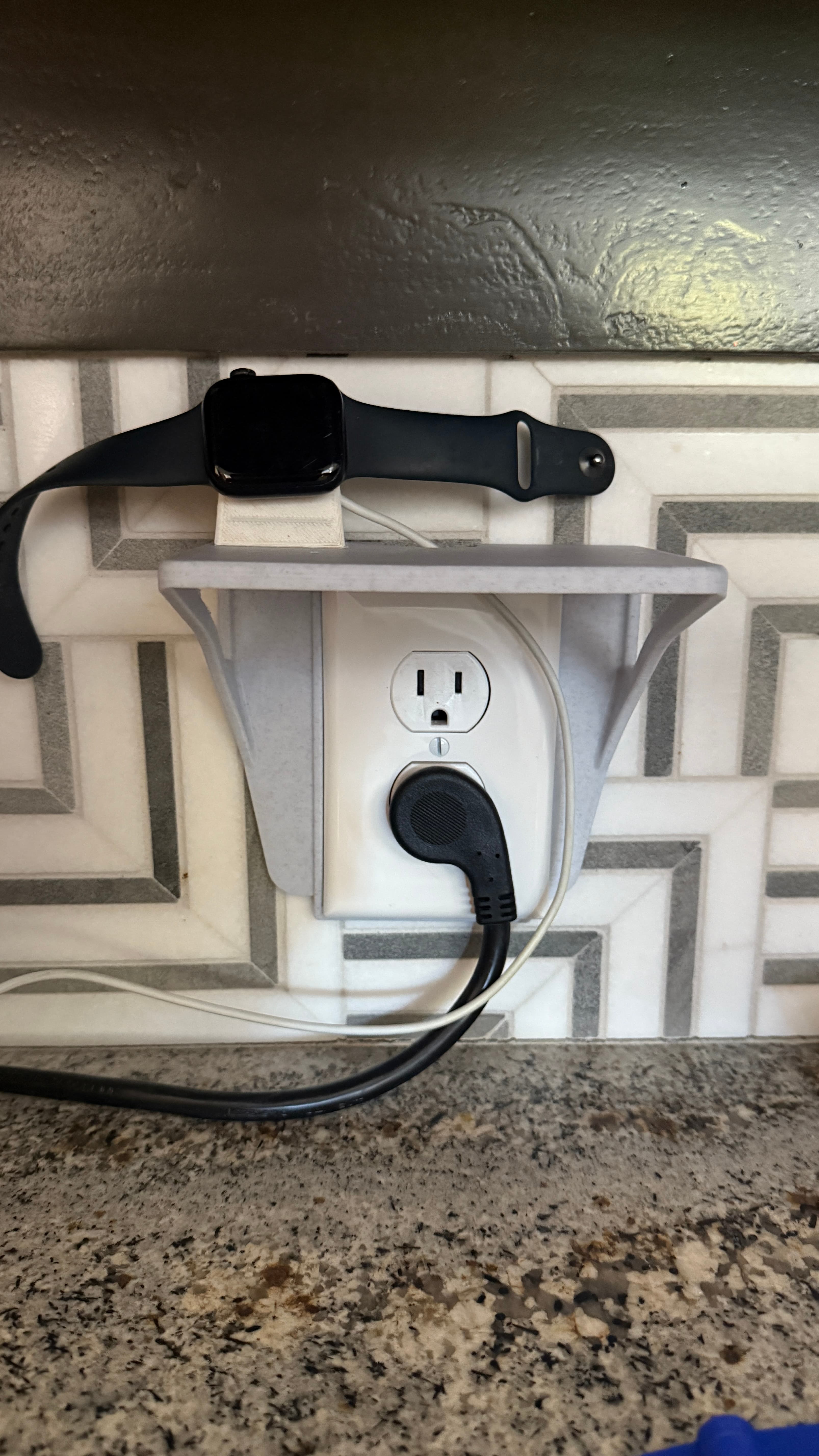

The Mini eShelf installs under your existing wall faceplate to create an instant shelf right on the wall.
Perfect for holding phones while charging, small devices, or anything that needs a handy resting spot near an outlet.

Key Features

• 100% printed – no hardware required
• 1-piece design – installs quickly under existing faceplates
• Multiple sizes included for various wallplate sizes
• Pass-through hole for cables and cords

🛠️ Instructions

1. Unscrew the wallplate and place the Mini eShelf where the wallplate was removed
2. Screw the wallplate back into place so it clamps the Mini eShelf securely

📏 Sizes
Wallplates are not standardized in size, so multiple versions are included:

• 70 × 114 mm (2.75 × 4.49 in) → common “normal” size
• 80 × 124 mm (3.15 × 4.88 in) → oversized faceplate
• 74 × 119 mm (2.91 × 4.69 in) → LogicalPlanet wallplates

(Measure your wallplate to determine the best fit before printing.)

⚠️ IMPORTANT As the wall plates of switches and electrical outlets are considered part of a flame enclosure, it is important to use a flame-retardant / self-extinguishing filament when printing parts to be used in electrical applications.
More information and links to some suitable filaments can be found here:

• All3DP – Flame Retardant Materials
• Prusament PETG V0 Jet Black

⚙️ Print & Slicer Settings

• Material: PLA or PETG
• Nozzle: 0.4 mm
• Layer Height: 0.2 mm
• Walls: 4 (1.6 mm)
• Top/Bottom: 5 (1.0 mm)
• Infill: 40% Cubic
• Detect Thin Walls: On
• Wall Generator: Arachne
• Brim/Raft: No
• Support: None required
• Print Orientation: As per STL/3MF files

Related Links

logicalplanet WallPlates Collection https://than.gs/c/131283

logicalplanet WallPlateMate Collection https://than.gs/c/131287

Visit my blog for more details and other designs https://www.logicalplanet.com/

Revisions and Updates I occasionally update and revise my designs. When I do, I’ll document the changes here. Check back periodically for the latest revision notes or if you’re experiencing any issues with a model. Please email me at logicalplanet3d@gmail.com if you would like me to make a revision or have comments about this design.
