Gazzaladra19K followers

Watering can “Waterdrop” video thumbnail

Watering can “Waterdrop”

848 downloads · 1 year ago · **A beautiful and robust watering can** – designed to be as big as possible for a regular 3D-printer

This model is restricted by licensing terms.

View license.

Description

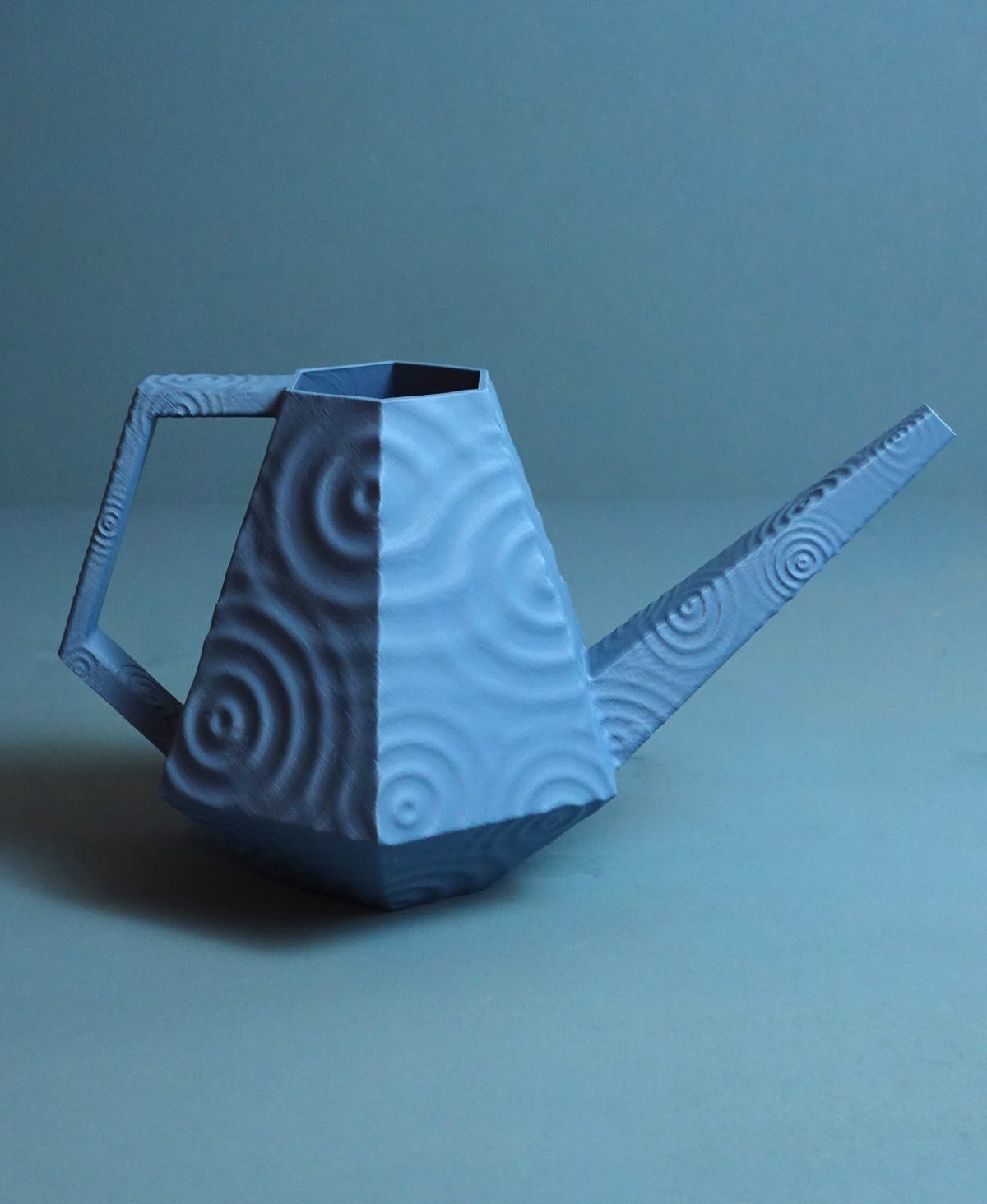

A beautiful and robust watering can – designed to be as big as possible for a regular 3D-printer. By printing it 45 degrees rotated, the z-height is used more efficiently while adding to stability due to bigger layers on the handle.

The watering can holds about 1,3 Liters Size standing (as it will be used): 278 x 160 x 160 mm

Print settings Required build volume: 190x190x250 mm Material usage: 220g

Material: PLA Print direction: Stl is rotated correctly, check images Support: none Nozzle size: 0,4 mm Line width: 0,4 mm Layer height 0,2 mm Outer walls: 5 Infill: 30% Top/Bottom Layers: 6

Make sure to use the wall count, infill and top/bottom layers – it won’t add too much of material usage and print time since the main wall thickness is 2 mm and will be solid anyway. These settings just make sure that the handle is super robust.

Tags:

Community Makes (3)

It printed well the way you provide the file but I would prefer a version with supports rather than to have a non textured part of the watering can be visible once it's done. Would you mind adding a second version which sits upright on the bed and has the part under the handle textured? I can add supports myself if that's something you don't want to put time into. Thank you.

I should have dried my filament before printing but it still turned out beautiful! I absolutely love all of the thought and detail put into this

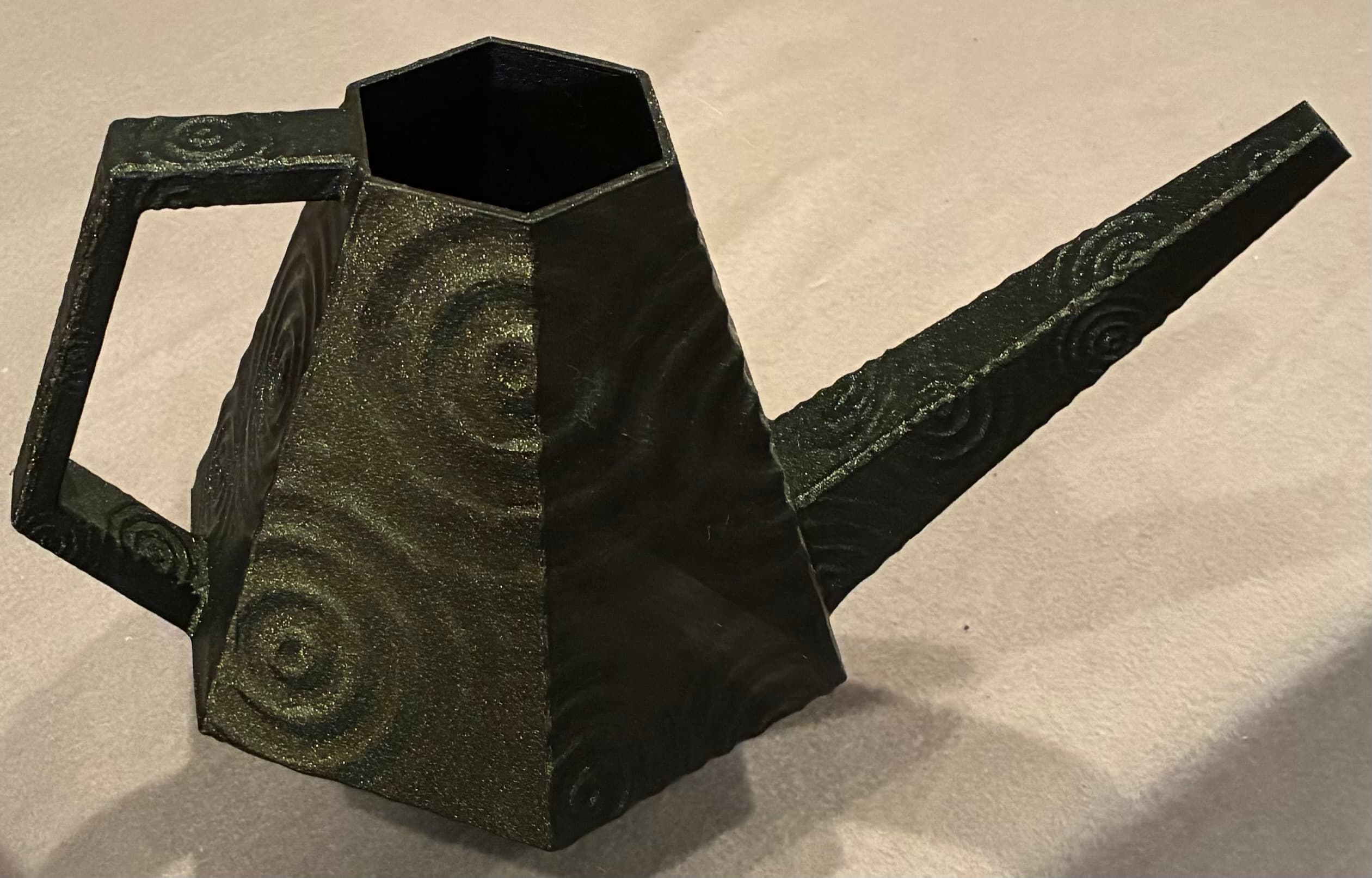

Amolen PLA Galaxy Gold (although it's more green than gold). Came out very well overall.

Community Makes (3)

Discussions

YoungPrint3D1 year ago

I should have dried my filament before printing but it still turned out beautiful! I absolutely love all of the thought and detail put into this

PrinterBambu Lab A1

bjdarch051 year ago

Amolen PLA Galaxy Gold (although it's more green than gold). Came out very well overall.

PrinterBambu Lab A1

MaterialPLA

Layer height0.2 mm

Infill density30 %

SupportsNone

Gazzaladra1 year ago

awesome!

CheezisCrust5 months ago

It printed well the way you provide the file but I would prefer a version with supports rather than to have a non textured part of the watering can be visible once it's done. Would you mind adding a second version which sits upright on the bed and has the part under the handle textured? I can add supports myself if that's something you don't want to put time into. Thank you.
