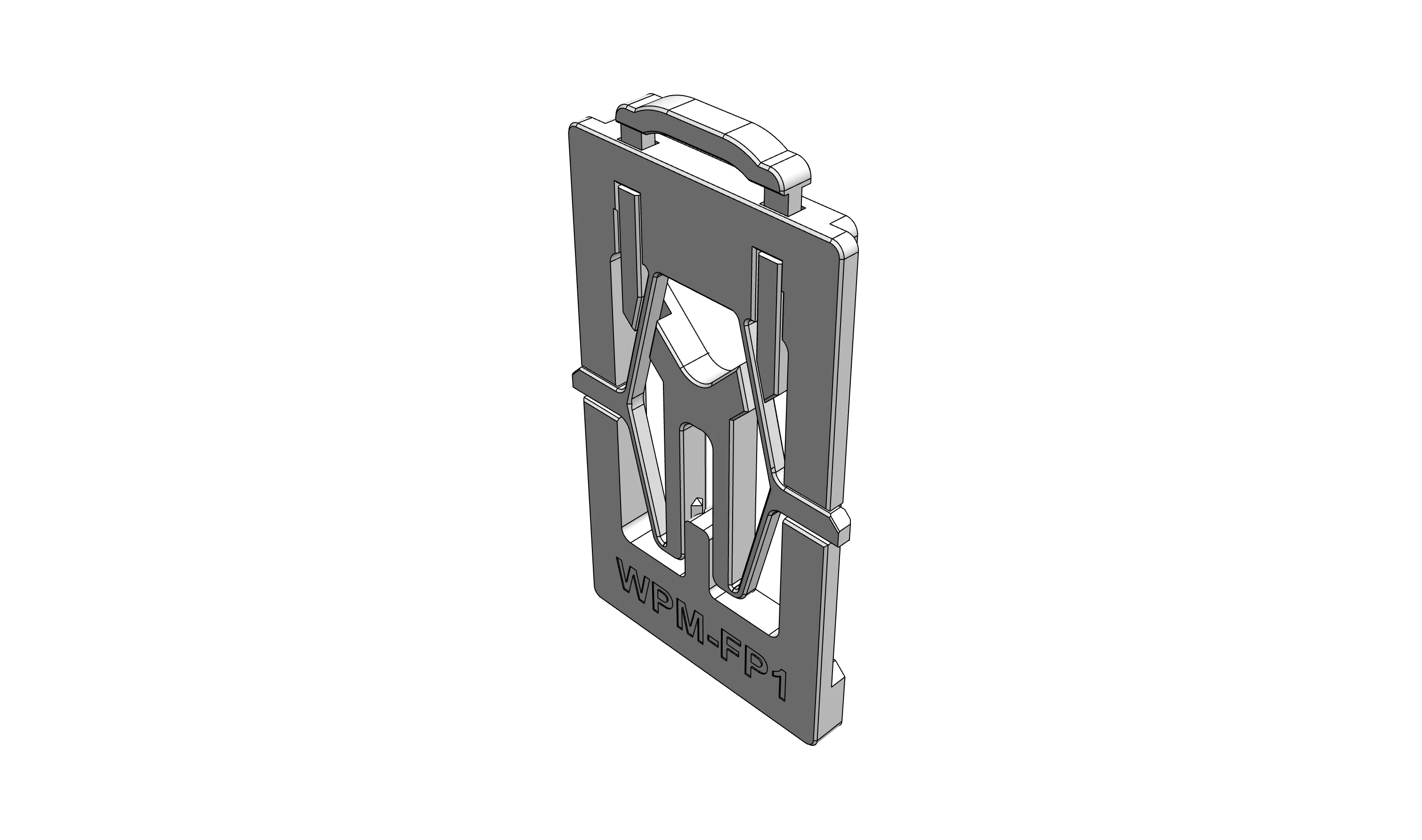

This is a glue-on FlexPlate that is compatible with all WallPlateMate accessories.

This FlexPlate is part of my modular WallPlateMate system, which allows you to snap on various accessories and expansion items. The FlexPlate can be used to attach the entire line of accessories to any wall without replacing a switch or outlet cover.

This is a compliant snap-together design.

Please check out the instructions on my blog at logicalplanet.com at… https://www.logicalplanet.com/collections/wallplatemate/

IMPORTANT: As the wall plates of switch and electrical outlets are considered part of a flame enclosure it is important to use a flame retardant / self-extinguishing filament when printing parts to be used in electrical applications. More information and links to some suitable filaments can be found here... https://all3dp.com/1/3d-printing-with-flame-retardant-materials/ and... https://www.prusa3d.com/en/product/prusament-petg-v0-jet-black-1kg

Print Settings

For the best results, I recommend the following:

• Material: PETG - See notes about self-extinguishing filament
• Nozzle: 0.4mm
• Layer Height: 0.2mm
• Line Width: 0.4mm
• Wall Count: 4 (1.6mm)
• Top and Bottom Layer Count: 5
• Detect Thin Walls: ON
• Infill: minimum 40% (Cubic)
• Ironing: Not required
• Brim: No
• Support: No

The entire collection of WallPlateMate can be found here... https://thangs.com/mythangs/collections/131287

If you have not already, check out my Wall Plate collection here…. https://thangs.com/mythangs/collections/131283
