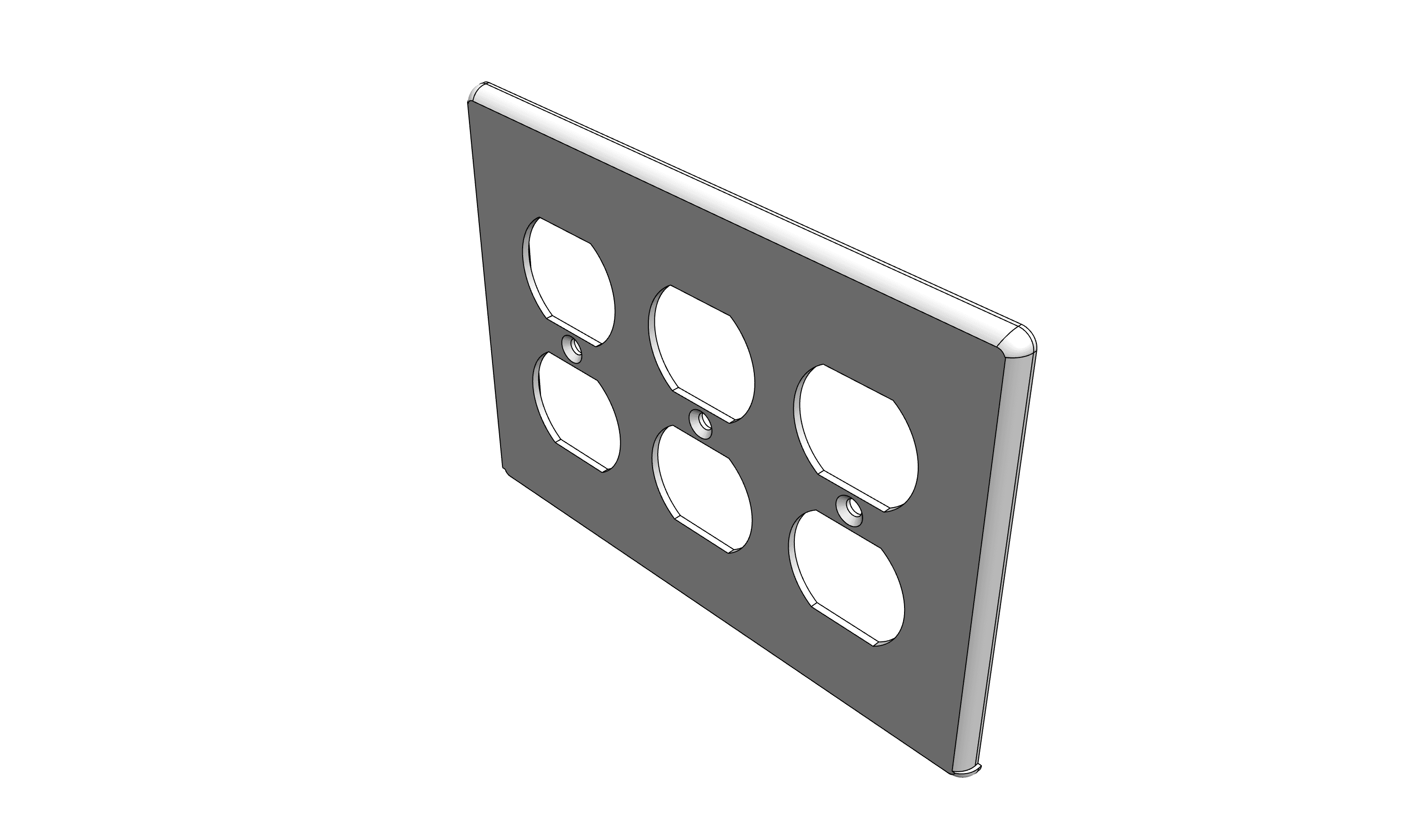

This is an electrical outlet three gang wall plate.

This wall plate allows you to replace and or customize your existing wall plate. This is a North American style wallplate cover.

IMPORTANT As the wall plates of switch and electrical outlets are considered part of a flame enclosure it is important to use a flame retardant / self-extinguishing filament when printing parts to be used in electrical applications. More information and links to some suitable filaments can be found here... https://all3dp.com/1/3d-printing-with-flame-retardant-materials/ and... https://www.prusa3d.com/en/product/prusament-petg-v0-jet-black-1kg

Print Settings

For the best results, I suggest the following: Nozzle = 0.4mm Layer Height = 0.2mm Line Width = 0.4mm Wall Count = 4 (1.6mm) Top and Bottom Layer Count = 5 Detect Thin Walls = ON Wall Generator = Arachne Infill = 40% (Cubic) Ironing = Not required Support = No Print orientation = As per the STL/3MF files.

Related Links

The entire collection of wall plates can be found here... https://thangs.com/mythangs/collections/131283

If you have not already, check out my WallPlateMate accessory system collection here…. https://thangs.com/mythangs/collections/131287

Visit my blog for more details and other designs: https://www.logicalplanet.com/

Revisions and Updates I occasionally update and revise my designs. When I do, I’ll document the changes here. Check back periodically for the latest revision notes or if you’re experiencing any issues with a model.
