Mushroom picture frame “Trametes Pubescens”
640 downloads · 2 years ago · **An extravagant picture frame for a special photo.** The mushrooms are 3d-scanned “trametes pubesce
This model is restricted by licensing terms.
View license.

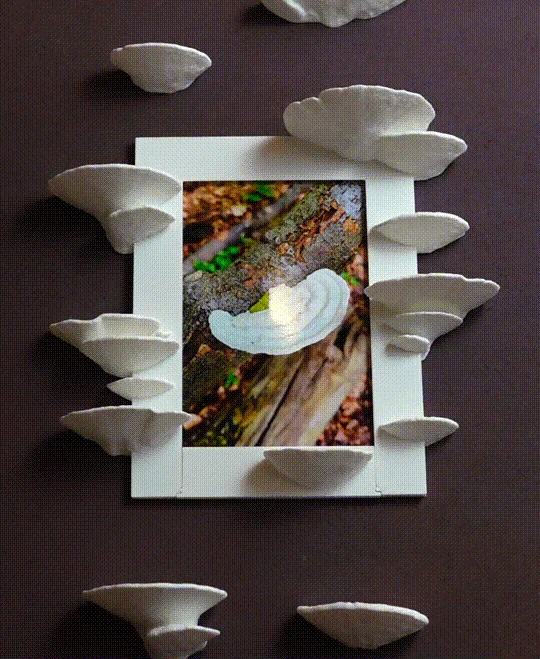

An extravagant picture frame for a special photo. The mushrooms are 3d-scanned “trametes pubescens” that I found in the forest. There is a vertical and horizontal version included that both work as wall mount, fridge magnet and tabletop display.
Versions
- For horizontal display
- For vertical display
Framing options
- European standard photos in the size 100 x 150 mm -European post cards in the size 104 x 148 mm
- US photos and post cards in the size 4x6 inch
Mounting options
- With the holder for tabletop display
- With 6 x 2 mm magnets on the fridge
- With a nail or wall mount tape on your wall
Instructions
- Choose the horizontal or vertical version based on what you want to frame
- Print the frame and lid
- Print the extra holder if you want to display it on a tabletop
- Slide in your photo
- Slide in the lid until it locks into place
Print settings Required build volume: 240 x 240 mm x 100 mm Material usage: 150 g Material: PLA Print direction: stls are rotated correctly, check images Support: none Nozzle size: 0,4 mm Line width: 0,4 mm Layer height 0,2 mm Outer walls: 3 Infill: 15% Build plate adhesion type: A brim for the holder, all other parts none
Mushroom picture frame “Trametes Pubescens”
640 downloads · 2 years ago in and
This model is restricted by licensing terms.
View license.
Stool is the box
Modular Shelf
Infinite Notebook
Clock(lamp)
Frank the frog pen holder
Multifunctional Planter “BRBP”
Sponge holder
Tea bag dispenser
Marshmallow table
Raily – modular wall organization
Mushroom lamp “Amanita Muscaria”
Glasses case
Laundry detergent dispenser
Mushroom coat hook / hanger
Cannon spotlight lamp
Planter “Extra”
Bird feeder | suet ball holder
Cheese shelf bracket
Paper towel holder
1/2 Hey, i just went into the assembly to check out how much work that would be - and due to some path dependencies this would be a little tricky. I think i have a better solution: The height difference between the two parts is 0.8mm - this is why the color change does not add up perfectly. You can lift the holder exactly 0.8mm from the build plate and have some support below - this way both surfaces come out at the same layer. Some slicers move parts to the build plate automatically
2/2 you would have to turn that off in the settings. In bambu studio there is no such setting so you would have to place both parts - merge them and then move the holder up in the per-object settings. This is a little workaround. If you have more questions or need help with this - feel free to join the mebers discord via the thangs integration in your settings here! I am reachable very easily there!
