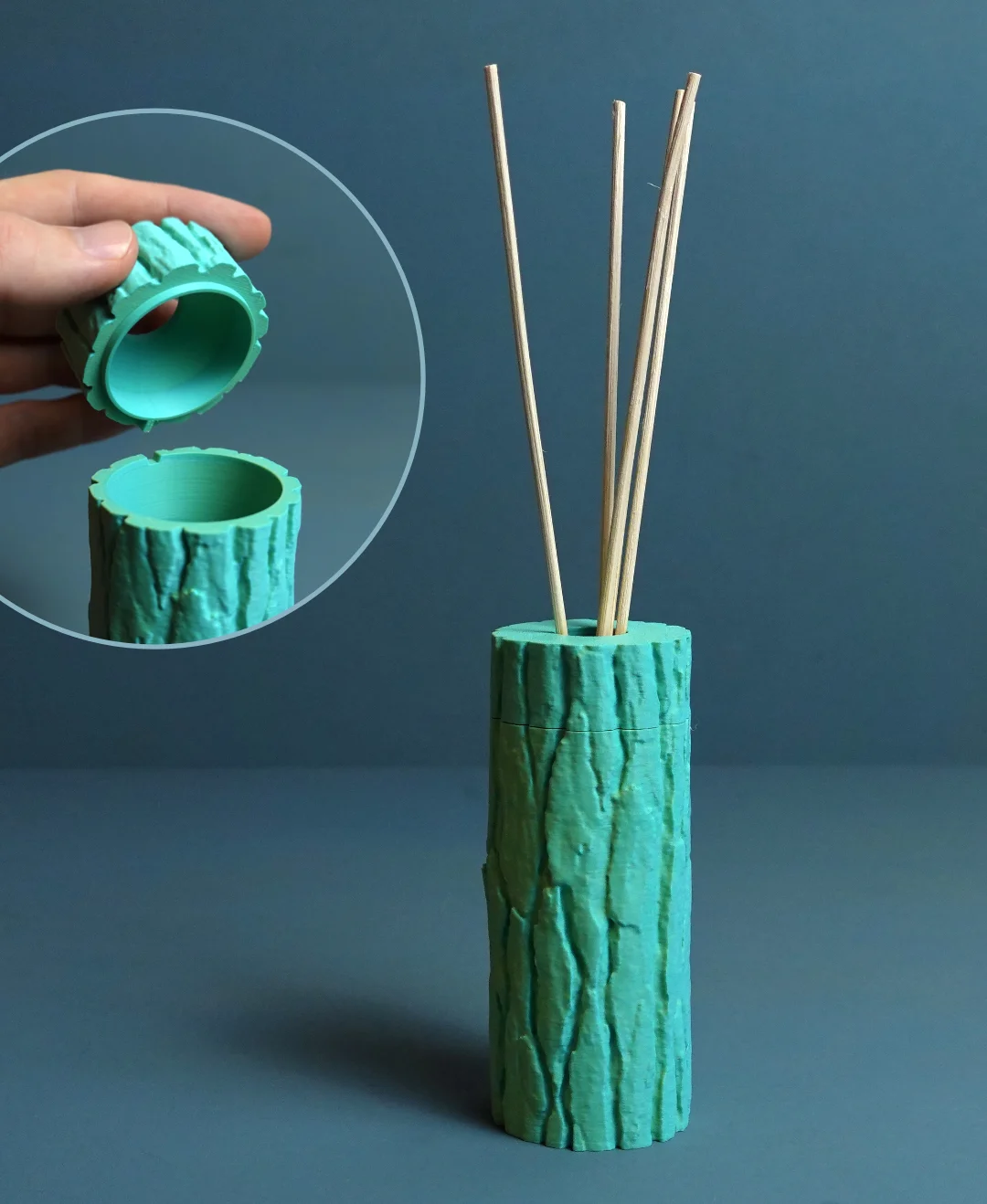

A reed diffuser based on a 3d scan of “pinus sylvestris” to be used with refill bags. The top and bottom align automatically with a notch.

Size assembled: 50 x 50 x 120 mm Filling volume: 100ml

Print settings Important: Please make sure that any oil that your scent may contain is okay with the material of your print. Make sure that nothing in the product might be able to dissolve your print. For me PLA works just fine.

Required build volume: 100 x 100 x 100 mm Material usage: 60 g

Print direction: stls are rotated correctly, check images Support: none Nozzle size: 0,4 mm Line width: 0,4 mm Layer height 0,2 mm Outer walls: 3 Infill: 15% Build plate adhesion type: none

Watertight printing: If you have a well set up machine it comes automatically - Otherwise here are some tips: Increase your wall count (at least 3), level your bed nicely, decrease print speed, increase layer height (at least 0.2mm), increase print temperature, check your seam quality, calibrate your e-steps and fine tune your retraction settings to make sure no holes appear after a layer change.
