ASUS PCE-AX58BT Antenna mount

by
jan.boerschlein97
Follow
Follow
Remix Model
ASUS PCE-AX58BT Antenna mount 3d model
2D
3D
Makes
Be the first to upload a make
This model is restricted by licensing terms.
0 Likes1 DownloadsDecember 28, 2021
This model is restricted by licensing terms.


Model originally uploaded to Thingiverse at https://www.thingiverse.com/thing:4275699.

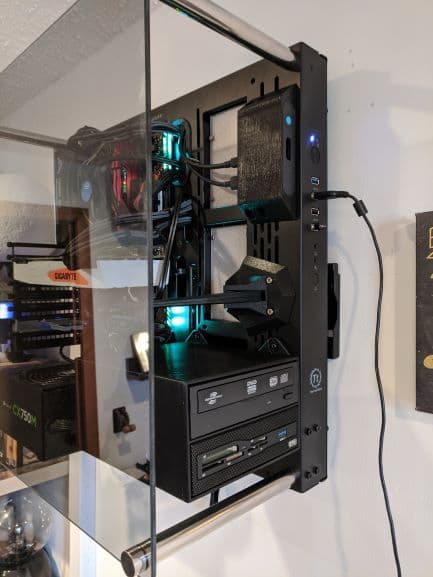

Part to mount the antenna of the ASUS PCE-AX58BT card. I would recomment printing in the orientation of the Cura screenshot. I did not start the part with the right orientation unfortunately. :)

Currently designed to fit a width of 17.50mm. The mount works with 3 one euro cent coins, as the Antenna has 3 magnets and I did not have anything I could use other than that.

You can download and change the coin size to fit different coins / things.

The holes and cutouts are for using cable ties.
