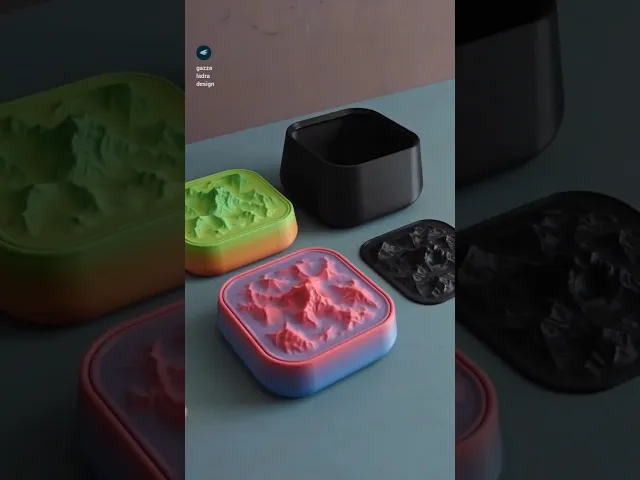

**A storage box or medium sized organic waste bin for your kitchen. ** The lid closes firmly for a minimal odor development. The inside is completely rounded off for easy cleaning. You can easily carry it in one hand to bring everything outdoors.

Included versions:

  • Body_big: The Body with a outer size of 181 x 181 x 100 mm
  • Body_small: The Body with a outer size of 168 x 168 x 59 mm
  • Lid: The lid that fits both bodies

Scaling / size

  • Upscaling (100% +): as big as you want
  • Regular size (100%): Wall thickness of 2mm
  • Downscaling (99% – 61%): works great
  • Minimum size (60%): Wall thickness of 1.2mm
  • Everything smaller than that is not tested

Print settings Required build volume: 180 x180 x100 mm Material usage: 200g body+ 45g lid Print time: 17h body + 4h lid

Material: PLA Print direction: stls are rotated correctly, check images Support: none Nozzle size: 0,4 mm Line width: 0,4 mm Layer height 0,2 mm Outer walls: 3 Infill: 15% Build plate adhesion type: none

Watertight printing: If you have a well set up machine it comes automatically - Otherwise here are some tips: Increase your wall count (at least 3), level your bed nicely, decrease print speed, increase layer height (at least 0.2mm), increase print temperature, check your seam quality, calibrate your e-steps and fine tune your retraction settings to make sure no holes appear after a layer change.
