If you Don't have a begboard and want a tool Holder which can be directly Mounted onto the wall? Wait no More :)

After scrolling through many pages i couldn't find a good tool holder which dont need Peg board and have multiple attachments for handling different tools, so i started making mine.

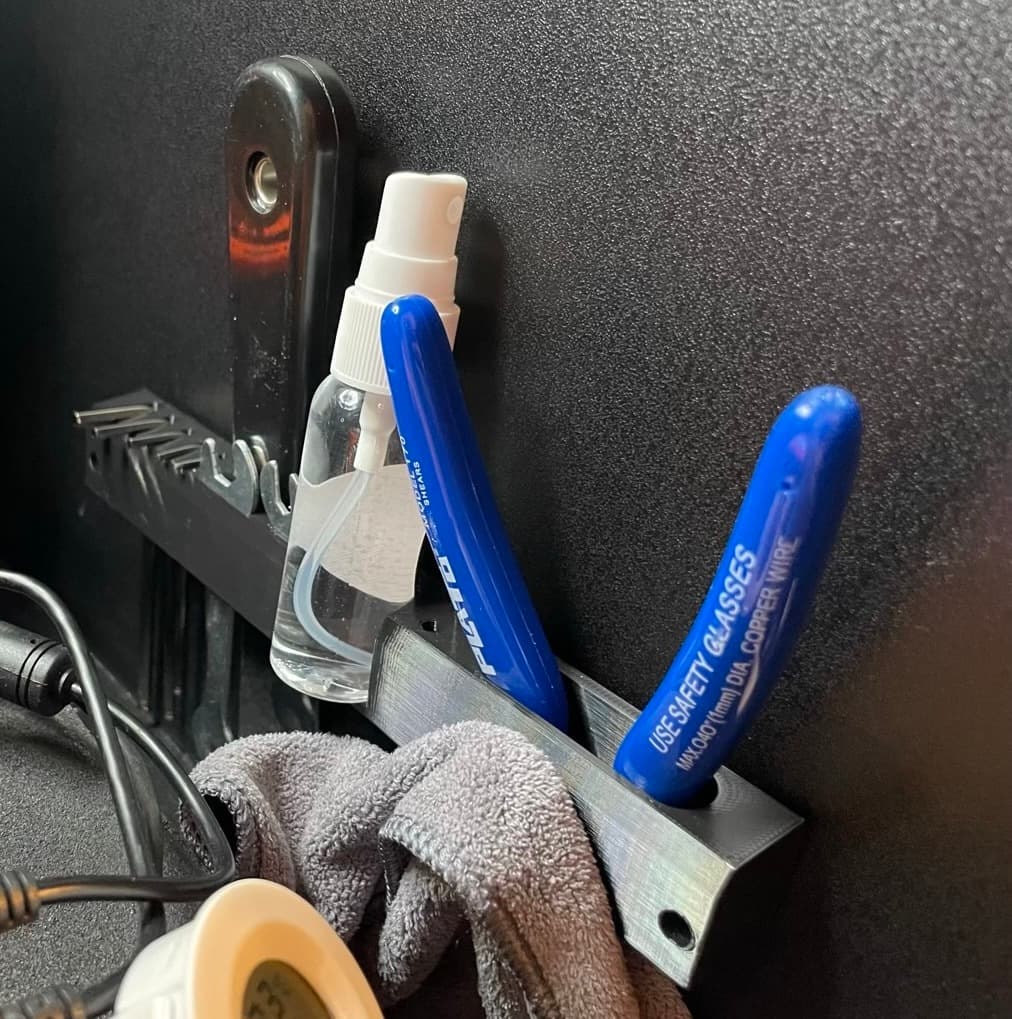

The base Component (Red one) Firmly attaches onto the Wall with the help of Screws & has Slots to accommodate various attachments which can Slide into these slots.

I have designed it to easily fit on 220x220 Build plate

Each Holder can have 4 attachments. You can print multiple holders to accomodate all your tools.

2 attachments has Holes infront of it to attach a latch with m4 screws. Latch prevents tool from falling down.

I recommend using atleast 1.2 mm wall thickness width (3 wall lines) and 20% infill for enough strength

No supports are needed!

Using Raft is recommended for printing attachments.
