MINI PLANETARY EGG v2by

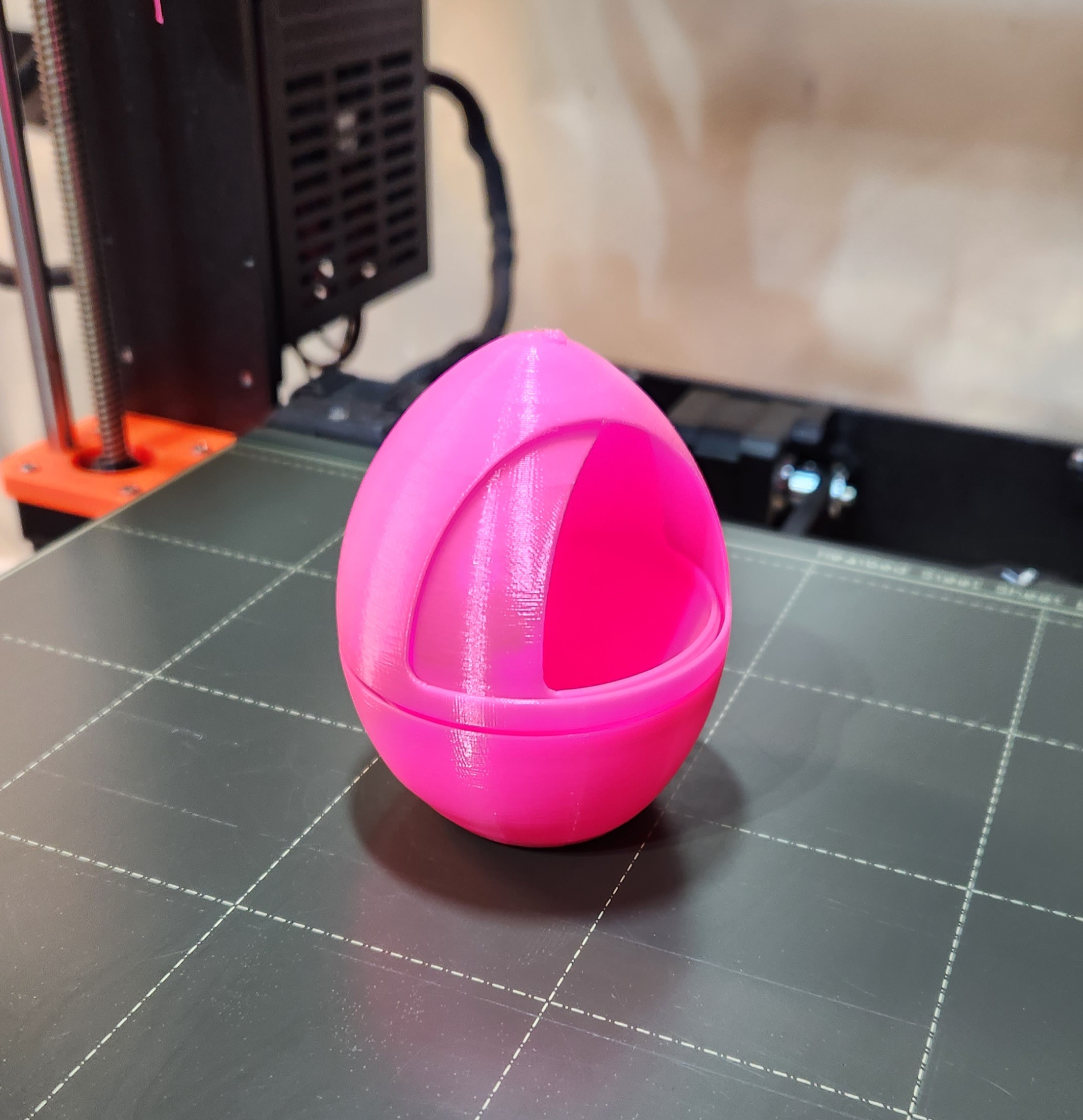

Mini Planetary Egg Container v2
This egg shaped container prints-in-place and uses a planetary gear stage on the bottom which allows it to open 4 times faster than its turned.
This is the updated version of the mini egg container I made last year. That version was hard to print and the teeth skipped easy since it was a scaled down version of the larger Planetary Egg Container. I redrew this version at a smaller scale with less teeth and I increased clearances so it would be easier to print. It is easier to print then the previous version but I did still have to tweak some settings for best results but now I get a successful print every time. They only weigh 25g each, so I'm making a bunch to give away. If you have issues with this scale the original egg is still easier to print.
Prints in place with no supports. I printed it with a .4mm nozzle at .2mm layer heights but a smaller nozzle would make it easier to print. Make sure your first layer height is perfect. You may have to adjust retraction settings as a result of short extruder movements.
Printed on the Muldex rep-rap IDEX printer
Need Help? Try our Facebook Group
Support and Licensing If you would like to help support more free models, or get permission to sell physical copies of my models, consider joining my Patreon
|Category||Hobbies & Games|
