I made a illuminated version of the Access Granted Panel, I released previously. There is both a multi-part version and a multi-color version, no parts require supports. The lenses are printed separately and are glued in, I printed them in semi-transparent PETG.

Soldering is not required as I utilized 8mm prewired 24v LEDs and COB LED Strip Lights with a 2x12 screw terminal power distribution board.

Note: I had to start suppling the LED's myself because the amazon seller quit offering them...

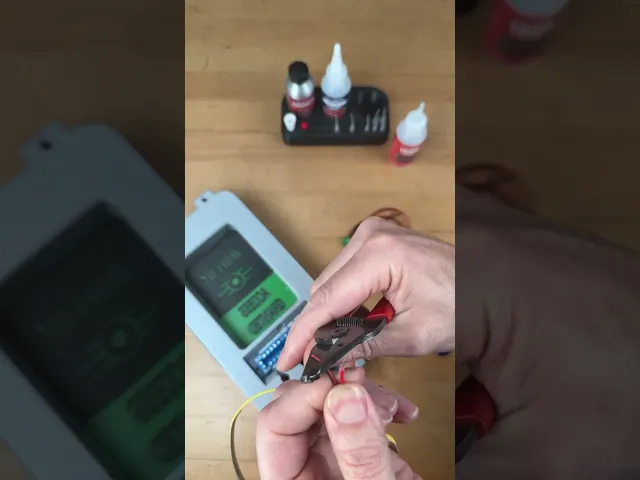

You only need to cut and strip the wires to length and terminate them into the board. Put the LED’s in the hole from the back side, aligning the flat on the LED. Then rotate the LED 180 degrees, to lock them in place. I also used a prewired jack to power the board. You will need 2mm x 6mm screws to secure the board. You can use a 24V 1w Power Supply to power them.

Printed on a Prusa XL(aff.) with Polymaker Metallic Pro PLA
