Gift Box #7
This is the seventh version in a series gift boxes that may look the same on the outside but they each have a secret way of opening. This one uses a planetary gear stage! Turning the bow rotates the sun gear which results in the ring gear turning at a 3:1 ratio. There are external threads on the ring gear which engage with female threads on the box. The planetary gears are aesthetically pleasing but they actually work against you as it takes three more turns to unthread. It’s easy to cross thread, make sure the top is on flat before tightening.
Gift Boxes Season 1 Gift box #1 Gift box #1 Quantum Addition Gift box #1 Print-In-Place Gift Box #2 Gift Box #3 Gift Box #4 Gift Box #5 Season 2 Gift Box #6 Gift Box #6 Print-in-Place Gift Box #7 Gift Box #7 Print-in-Place Gift Box #9 Gift Box #10 Gift Box #11 Print-in-Place

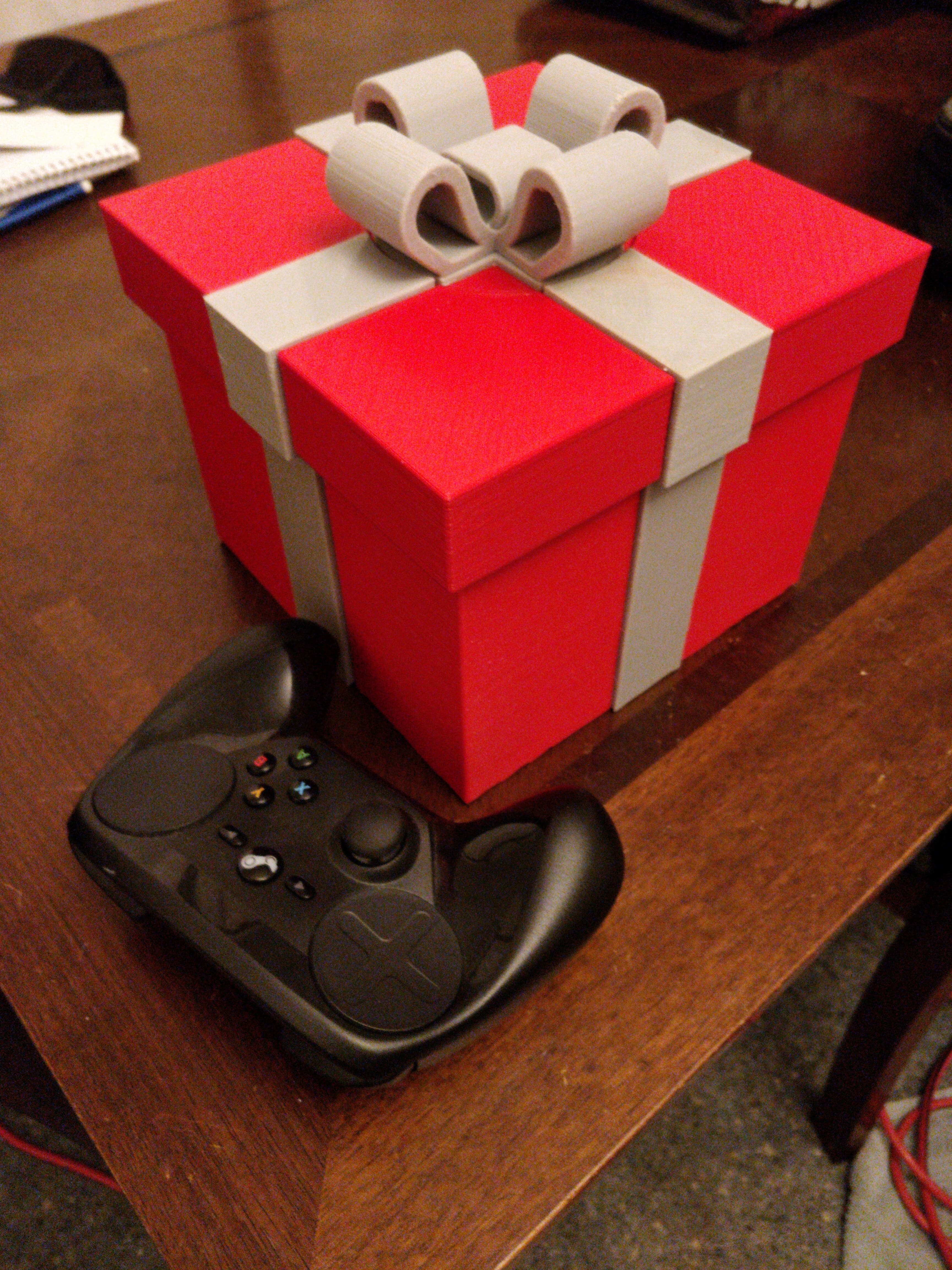

Its roughly 100mm x 100m x 80mm tall. The top prints in place as one part, none of the parts require supports. The bow and ribbons are printed separately and glued on. I printed all the parts in the orientation the stl’s are provided in. I prefer the vertical orientation for the ribbons for a smoother surface finish. I added helper pads to them to keep them stable during printing. I printed everything at .2 layer heights but the box could definitely be printed at a larger layer height without issue.
I used Gorilla Glue(aff.) for gluing on the ribbons and the bow.
If you don’t already own as set of these clamps(aff.) you should pick them up, they really help with gluing the ribbons on.
Printed on the Muldex rep-rap IDEX printer.
Note: Assembly model for reference only.
