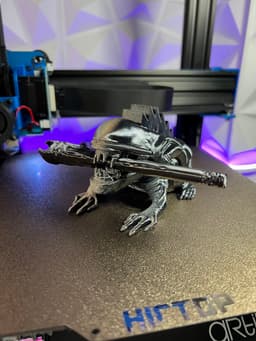

This is a Xenofrog Guiro - A percussion instrument that produces a ratchet sound. Obviously this is inspired by the well known Güiro Frog. While not in use you can place the stick inside the inner jaw. If you print it larger you can actually use it to hold lot's of stuff (Pens, Stylus, Brushes, tools etc.)

V2 small update: I noticed the classic back was too sharp - I made an additional version with smoother edges that is also easier to play on.

The download has several files:

• One piece stick
• Stick split to 2 parts for easier print
• Classic back Xenofrog
• Organic back Xenofrog

Classic back - Triangles Organic back - See images :)

Because of the model's complexity, the teeth and the inner jaw - The only logical way to print it is facing UP, without any supports. You may want to use a brim or a raft for a better grip on the bed but that depends on your printers adhesion ability. For better sturdiness you might want to align it so the back faces the side of the printer, this way the bed movement won't wiggle the print. Seam placement - Place it on the bottom of the Xenofrog. Layer height totally up to you. Infill - I used lightning at 20% to make it almost hollow, Sounds good like that but anything above 15% should work.

Files:

The _UP files have a small cut out at back so they are already aligned for printing. The _FLAT files have the extra end of the body allowing you to print it the way you want. You can align the _FLAT files upwards and setup supports ONLY for some of the bottom part just enough to hold it in place.

Otherwise DO NOT use supports for this print.

Printing the stick can be done in 2 parts. If you want to print it whole you might want to lower your printing speed to reduce vibrations near the top.

If you have any issues please let me know.
