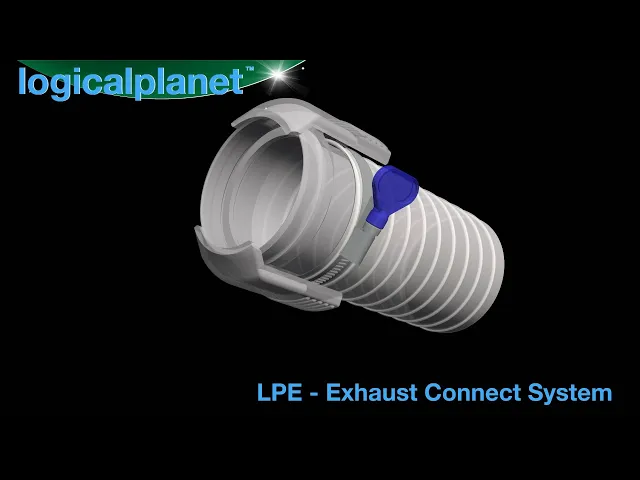

LPE Exhaust Quick Release and Mounting System video thumbnail

LPE Exhaust Quick Release and Mounting System 3d model

LPE Exhaust Quick Release and Mounting System

689 downloads · 2 years ago · **Quick Connect Exhaust System** **v1.00** If you're running multiple 3D printers — or any setup th

This model is restricted by licensing terms.

View license.

Description

Quick Connect Exhaust System v1.00

If you're running multiple 3D printers — or any setup that needs exhaust or vacuum ducting — managing a tangle of hoses and clamps gets old fast. The Quick Connect Exhaust System is a modular, tool-free ducting system designed to make connecting, disconnecting, routing, and mounting exhaust hoses actually pleasant.

The Quick Release Head snaps on and off with one hand. The whole system rotates freely when connected, so you can reposition without fighting your hoses. And if you prefer traditional pipe clamps, every component is fully reverse compatible — nothing is locked into the quick-connect approach.

Key Features

One-handed quick connect and disconnect — no tools, no clamps required
Free to rotate when connected — reposition hoses without disconnecting
Snap-lock mounting brackets — print-in-place swing clamp latches securely, releases with a thumb press
Modular and expandable — mix and match connectors, extensions, and manifolds to suit your layout
Reverse compatible with standard pipe clamps — use what you already have
Scales to any size setup — single printer to full multi-printer manifold runs

What's in the System

Core Connection Parts

LPE25-H00 — Quick Release Head
LPE25-HG1 — Gasket (for Quick Release Head)
LPE25-E11 — End Ring
LPE25-M22 — Middle Ring (Straight Connector)
LPE25-M21 — Mount Ring (Y-Connector)
LPE25-Y41 — Y Section

Extensions

LPE25-X80 — Internal Connector Ring
LPE25-X81 — 100mm Extension
LPE25-X82 — 200mm Extension

Caps

LPE25-C91 — Head Cap
LPE25-C92 — Tube Cap

Mounting

LPE25-MW1 — Wall Mounting Bracket (print-in-place swing clamp)

Fan Connectors

LPE25-F60 — 6060 Fan Connector Mount
LPE25-DH1 — Dual Head Manifold (120mm fan)
LPE25-WV1 — Wall Vent Port

How to Build It

Each accessory part (Straight Connector, Y-Connector, Fan Connector) is assembled from rings that glue together. Apply a bead of CA or epoxy glue around the mating surface of each ring before pressing together. Extensions (LPE25-X81, LPE25-X82) slot in between the rings of any accessory part, letting you dial in the exact length you need.

The Quick Release Head (LPE25-H00) can be used on any connection point in the system and is optional — any connection can also be made permanent or secured with a standard pipe clamp.

See the Selector Guide and Build Guide images for full assembly diagrams.

Print Settings

Recommended material: PETG or PLA
Nozzle: 0.4mm
Layer height: 0.2mm
Line width: 0.4mm
Wall count: 4 (1.6mm)

Thru-Wall Components

A companion series of thru-wall components is available separately:

Quick Connect Exhaust System — Thru-Wall Series https://than.gs/m/1206813

Related Links

Join the LogicalPlanet Discord https://linktr.ee/logicalplanet

Visit my blog for more details and other designs https://www.logicalplanet.com/

Revisions and Updates I occasionally update and revise my designs. When I do, I'll document the changes here. Check back periodically for the latest revision notes or if you're experiencing any issues with a model. Please email me at logicalplanet3d@gmail.com if you would like me to make a revision or have comments about this design.

Tags:

Community Makes (1)

Bravo on the versatile connector design and compliant head ring mechanism! I was able to adapt it for my printer cabinet with sliding shelves. I added a magnetic 2.5 inch rigid duct connector so the duct can dock/undock as needed when the printer is pulled out of the cabinet. The make picture is animated so you can click it to view it in motion. [adaption](https://makerworld.com/en/models/878426)

Community Makes (1)

Discussions

system1 year ago

Bravo on the versatile connector design and compliant head ring mechanism! I was able to adapt it for my printer cabinet with sliding shelves. I added a magnetic 2.5 inch rigid duct connector so the duct can dock/undock as needed when the printer is pulled out of the cabinet. The make picture is animated so you can click it to view it in motion. [adaption](https://makerworld.com/en/models/878426)

PrinterBambu Lab P1S

MaterialPETG

Layer height0.16 mm

Infill density8 %

SupportsNone

logicalplanet1 year ago

oh, wow, I really like what you have done. The magnetic dock is fantastic too. Thank you for posting.

Zydukko2 years ago

McFrickin genius

rgsattphone3 months ago

Can you size this to 4 inch tubing?

logicalplanet2 months ago

I have a 2.5” to 4” adapter but if you mean make the quick release head actually 4”…. I am not sure but can try if you want to do the testing. If you are up for i5 please email me at logicalplanet3d gmail.com.

easyed1 year ago

any chance you have a single port wall manifold version? :)

logicalplanet1 year ago

Yes, the single port wall element is included in the set linked here... https://than.gs/m/1206813 Let me know if you have any questions.

mdave1 year ago

Has anyone been able to print the head with an X1C? Bambu Studio seems to butcher the support structure from the original STL file.

logicalplanet1 year ago

oh, that usually means you do not have "detect thin wall" enabled. It is under the Strength/Walls section in Bambu Studio. Also, in Quality/Wall generator set wall generator to Arachne. Please let me know if that helps.

mdave1 year ago

That now seems to slice correctly, will give it a go thank you. Also, awesome models, you do some fantastic work!

mathanielt2 years ago

Bad ass
