Obi-Wan's Replaceable Blade Lightsaber

1.5K downloads · 4 years ago · **Obi-Wan Kenobi Collapsible Lightsaber** _Replaceable Blade Version_ This version of the lightsab

Description

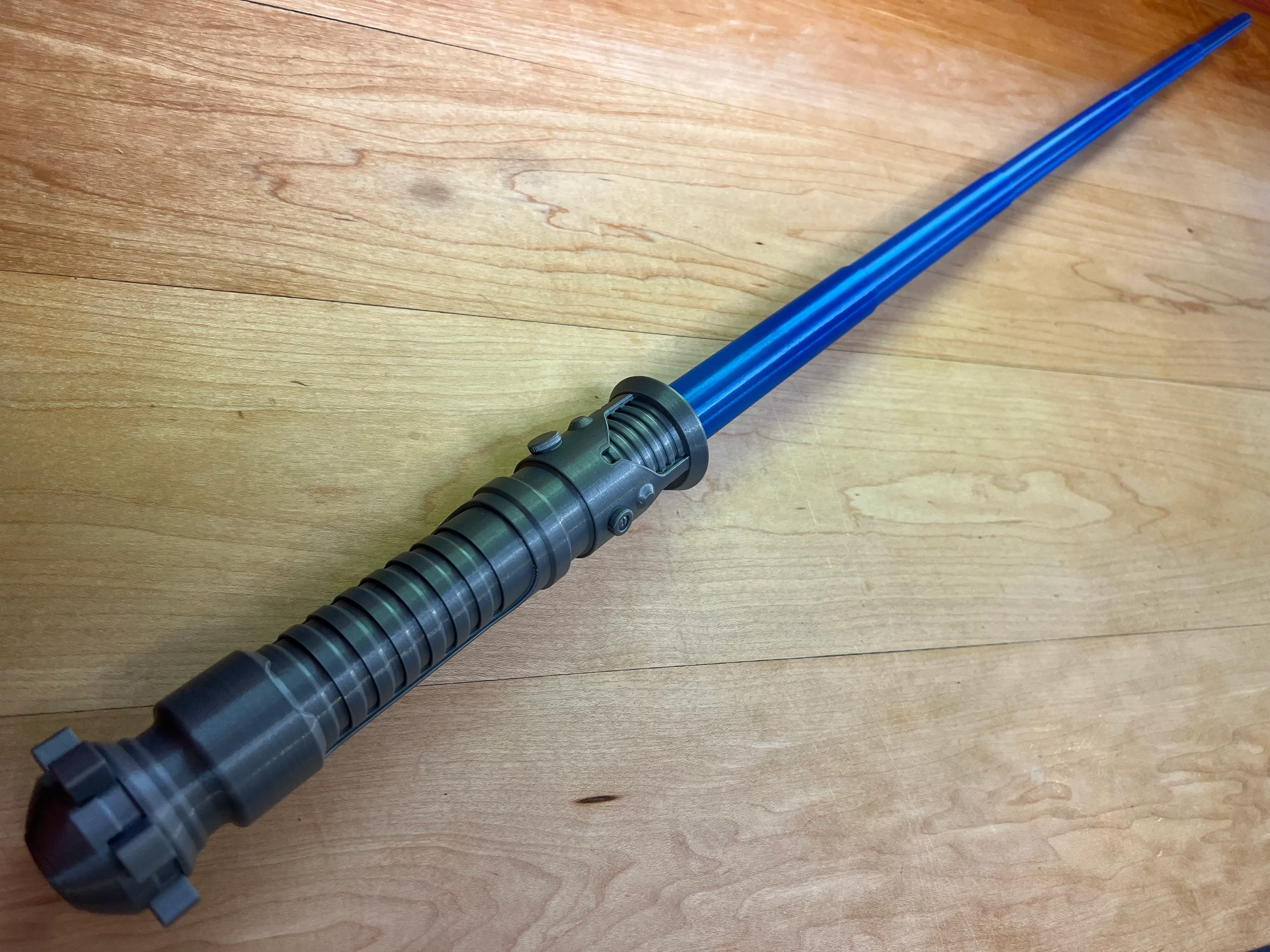

Obi-Wan Kenobi Collapsible Lightsaber Replaceable Blade Version

This version of the lightsaber hilt has a screw on cap so the blades can be printed separately then inserted or replaced. External supports are not required but there are some built in supports for the buttons, be sure to remove them after printing. The blades can be printed all at once concentrically or individually in vase mode.

Find detailed instructions on how to print collapsing swords on my website.

Printed with Solutech Silver Metal for the handle and [Atomic Sapphire Blue for the blade

Note: Assembly model for reference only.

Having troubles printing or want to show off your prints? Join our Facebook Group.

Tags:

Community Makes (2)

Community Makes (2)

Discussions

ZombieHedgehog2 years ago

aidenjc983 years ago

I have had trouble printing in the vase mode. I've had to scale down the first part of the blade so it will fit properly into the hilt, but when I try to do the next segment (even after scaling it down) it still doesn't fit properly. I use Cura slicer. Can somebody help? I'm trying to print this for my friend, so I need to finish this soon.

3dprintingworld3 years ago

In vase mode you don't want to scale, instead chance the size of your line width.

shutetyler103 years ago

so i have been trying to print this for a few hours now using creality slicer, and my line width is at 1.5mm, but it seems like the gap between parts is being scaled the same... i went from .94 to 1.14 strait to 1.5 because im impatient, but it doesnt seem to tighten the fit. i have also kept the scale at 100% every time

3dprintingworld3 years ago

Are you printing in vase mode? If not, it wont have an affect.

mrzuhlke4 years ago

The Sith Blade fits fine.

3dprintingworld4 years ago

Yep, its just a little shorter.

mrzuhlke4 years ago

How do you get it to easily collapse? It really locks in place and is very hard to collapse.

3dprintingworld4 years ago

I hold the hilt in my hand and squarely smack the blade against the table. I try not to extend it to fast so that doesn't happen.

Sc[A]rY4 years ago

cant turn top layers on in spiral vase mode (Prusaslic3r) any Ideas?

UliLac3 years ago

Slice the model twice. Once in vase mode, the second "normal" with your defined top layers. Then open both gcode files in editor and copypaste the end prtion of the "normal" model over the same height portion of the vase gcode. Do a test print first (plane cut in PrusaSlicer) to find the exact settings you need.
