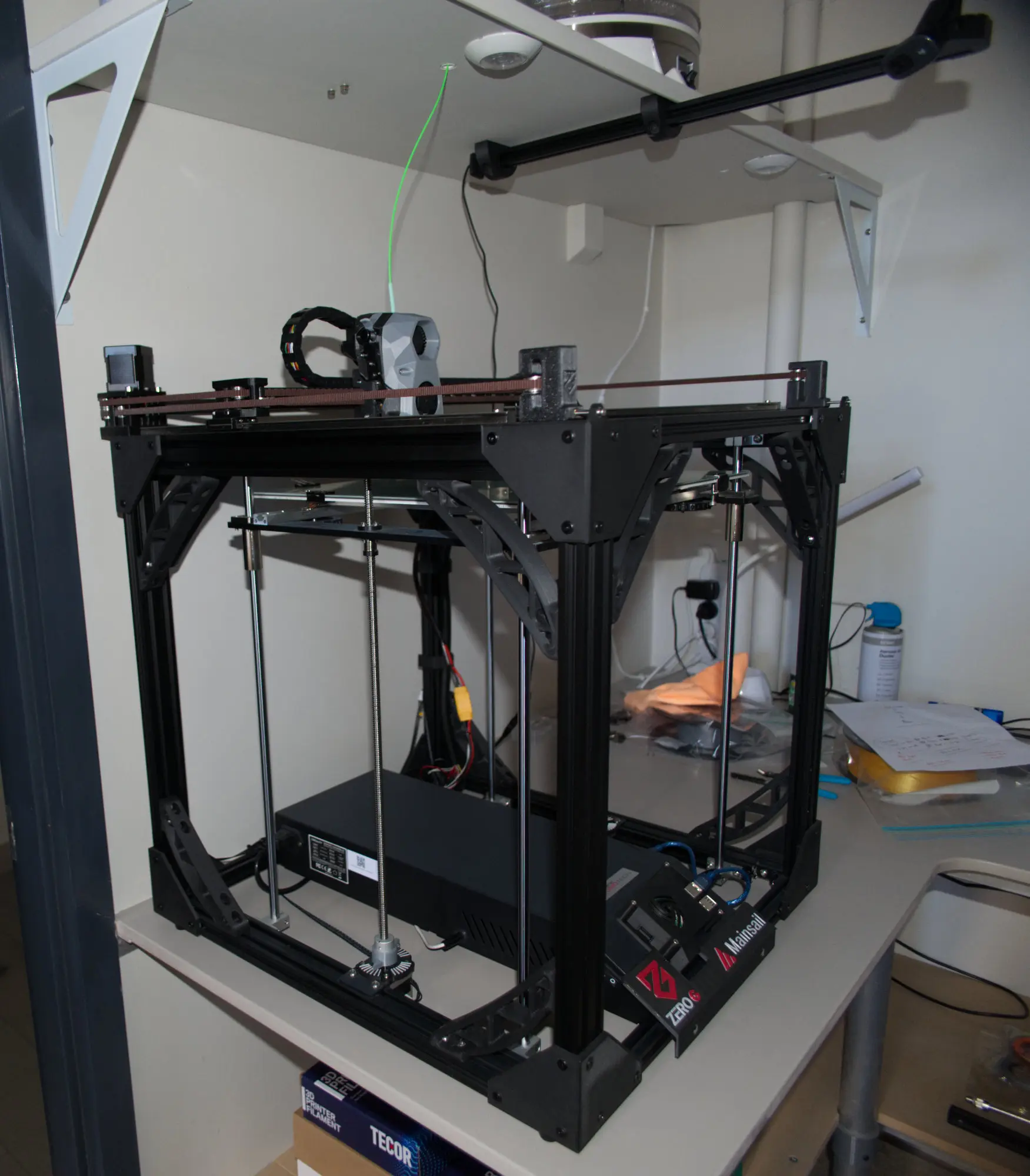

These braces are intended to strength and stiffen a 3D Printer's frame. I used them to remove the front top bar from my Ender 5 Plus (a mod I cannot yet recommend).

Designed to be installed with M5 Machine Screws and T-Slot nuts onto 20 series Aluminum Extrusion frames.

I'm including 2 files, the original ones I used on my Ender 5, and the new Larger Versions that are the maximum size useful for the Ender 5, which I haven't printed yet. The smaller ones may be decent for printers smaller than the Ender 5 Plus.

• Necessary Parts (Affiliate Links):
  • Requires M5 Screws: https://amzn.to/3rrZe13
  • Requires M5 T-Nuts: https://amzn.to/3eKerFD
  • Creality 3D Printers: https://comgrow.com/?sca_ref=729730.FbKCq261OV

• INCLUDED FILES:
  • CAD STEP File to learn how I designed these.
  • "Large" Gusset
  • "Small" Gusset

• PRINT PARAMETERS:
  • No Supports Required
  • 6 Perimeters MINIMUM
  • 50%+ Infill

Mine were printed in Inland Black PLA+
