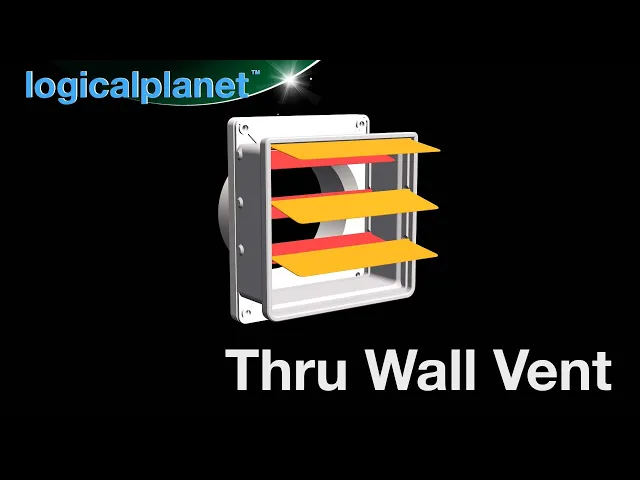

Double Flap (Walled) Exterior and Thru Wall Venting System
This is an extension of my quick-connect system for exhaust and vacuum systems. This group of components are specifically for the thru wall section and includes a double-walled (double flap) exterior vent as well as 3 variants of headers for the inside wall.
The other components of my quick-connect exhaust system are listed here... https://than.gs/m/1008664
All of this will also work in conjunction with the various 3D printer exhaust solutions I have posted.
It is a reasonably comprehensive system so please see the full details including instructions, diagrams and print information on my blog at... https://logicalplanet.com/
How I print it: Material = I recommend PETG but any material should work.
Nozzle = 0.4mm Layer height = 0.2mm Line width = 0.4mm Wall count = 4 (1.6mm)
UPDATE: 2024-11-26: I have reduced the diameter of the screw holes in WV9 so that the M4 an bolts can be threaded directly into the WV9 part.
