Biltema InfraRed Thermometer bracket for Multiboard 3d model
Biltema InfraRed Thermometer bracket for Multiboard 3d model
This model is restricted by licensing terms.

Combine with Multiboard Drop-In Nut Weightbearing Snap - M3 to hold a Biltema 15-254 InfraRed Thermometer.

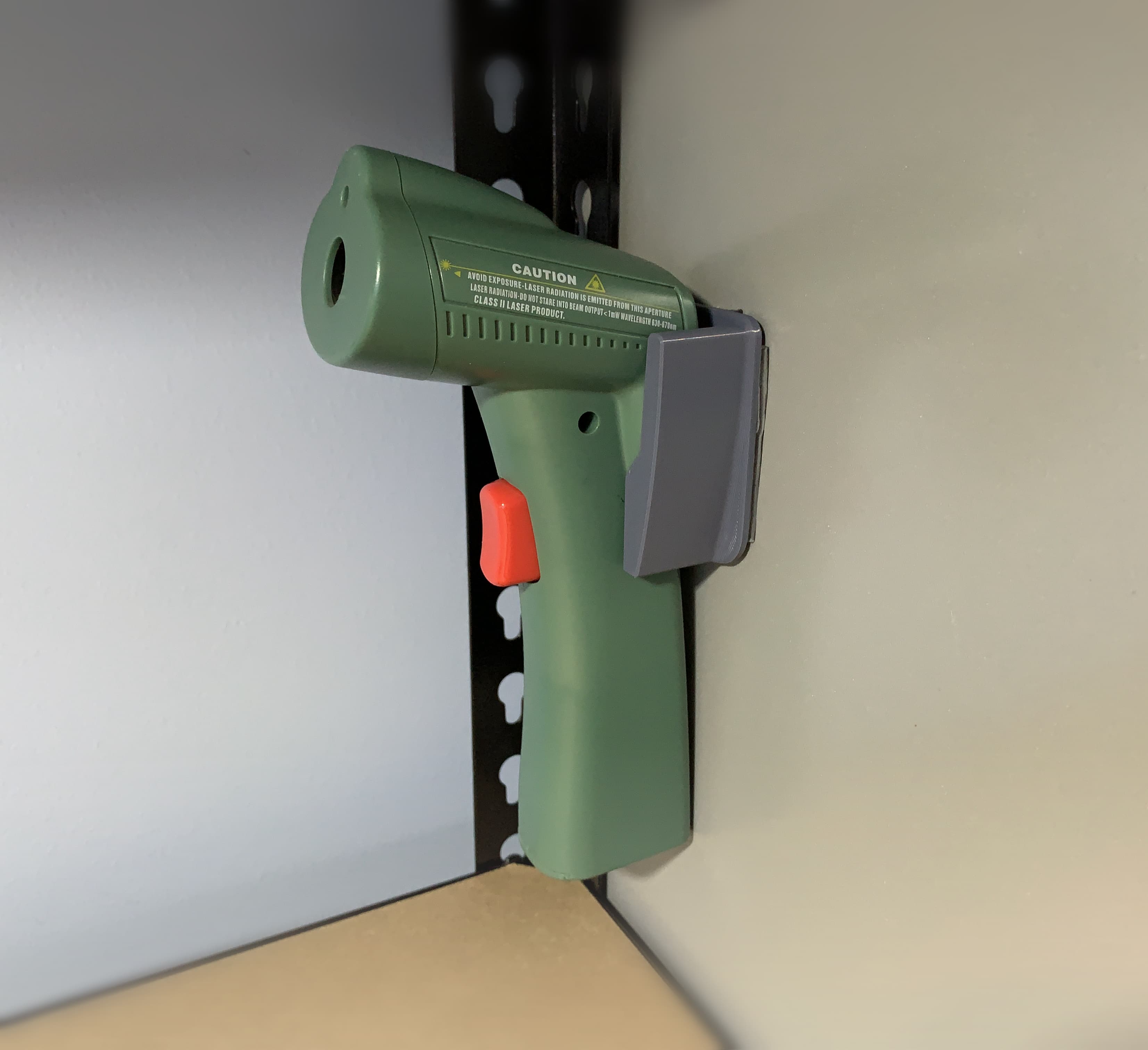

Minimal bracket to hold a InfraRed Thermometer from Biltema. Slide it in backside first and rotate it into the position shown in the picture.

Mounting

  • 1 M3 - Nut
  • 1 M3 Screw
  • 1 Drop-In Nut Weight Bearing Snap M3 (see Drop-In Nut - Weight Bearing Snap - M3 - 3D model by Multiboard on Thangs)
  • A Multiboard tile (see multiboard.io)

Print instructions

  • 0.20mm Quality
  • 3 Perimeters on Verical shells
  • Print direction as provided in the model
  • Filament: PETG or PLA (I've only tested with PLA)
  • 15% grid infill

3 Likes4 DownloadsOctober 6, 2024



3 Likes4 DownloadsOctober 6, 2024
This model is restricted by licensing terms.

Instructions

Filament • 0.2mm

MaterialPLA
Layer height0.2 mm
Infill density15 %
SupportsNone
BrimNo
