Thank you for your interest in my design! even though its simple and crude I feel it is very effective. please let me know your experience with it if you print and use!
Updated 5-20-22 Flush top design, No supports needed
Designed for Ender 3 Pro and alike
Original version designed for 25mm springs that come from the bed leveling adjusters on an ender 3 pro, replaced springs with silicone and wanted to find a use for the springs. standard or yellow springs will fit in this version. But I recommend the stronger yellow springs. standard version will not work with shorter springs as the plates will bottom out and touch.
Shorter version is for widely available and cheaper 8mm x 20mm springs.
Both Versions will need 12 springs per printer. and are especially useful when printing with multiple printers on the same surface. completely eliminates vibrations from printer to printer. you will need 4 bottoms and 4 tops.
Design can be shared and altered, please do not sell design or items commercially without contacting me first
Parts can be scaled down slightly if you want the springs to fit tighter but must be an equal percentage, I would imagine that the feet of the printer may not fit after scaling down. I print the top part upside down with supports, but it would probably work right side up but will still need supports. All 8 parts you will need will print at one time if you choose to do so.
This is my first design in Fusion, feel free to remix and make it better.

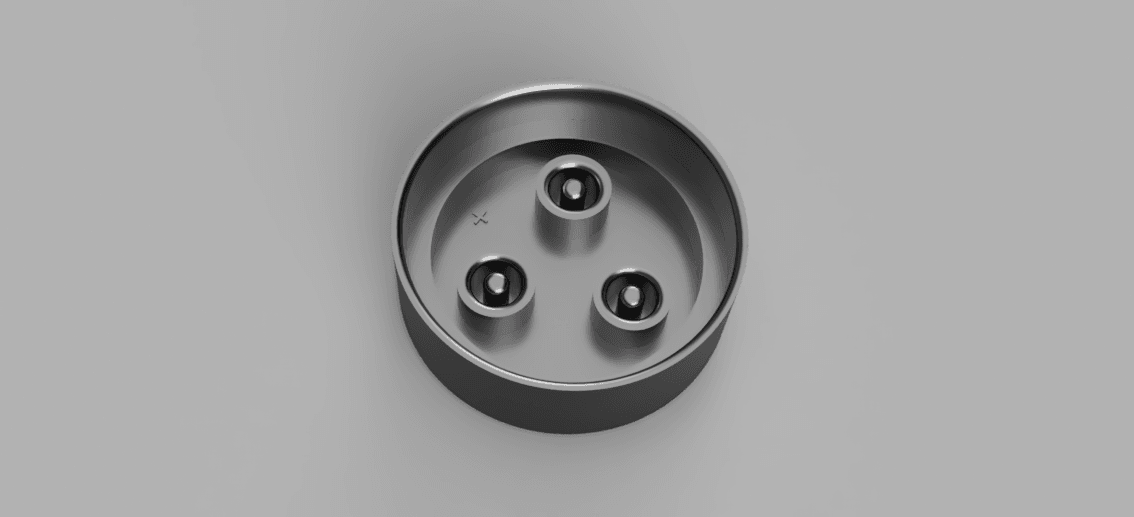

Added alignment markers (+) to make sure the spring seats are aligned properly, although the seats look equally spaced there is a very very small discrepancy.
Any tips appreciated but not expected
