Hex Cable Door for BigTreeTech SB2240 / 2209 StealthBurner PCB

by
MandicReally
Follow
Follow
Remix Model
MandicReally
MandicReally
Image 1 of 7
Hex Cable Door for BigTreeTech SB2240 / 2209 StealthBurner PCB 3d model
2D
3D
Makes
Hex Cable Door for BigTreeTech SB2240 / 2209 StealthBurner PCB 3d model
Hex Cable Door for BigTreeTech SB2240 / 2209 StealthBurner PCB 3d model
Hex Cable Door for BigTreeTech SB2240 / 2209 StealthBurner PCB 3d model
Hex Cable Door for BigTreeTech SB2240 / 2209 StealthBurner PCB 3d model
Hex Cable Door for BigTreeTech SB2240 / 2209 StealthBurner PCB 3d model

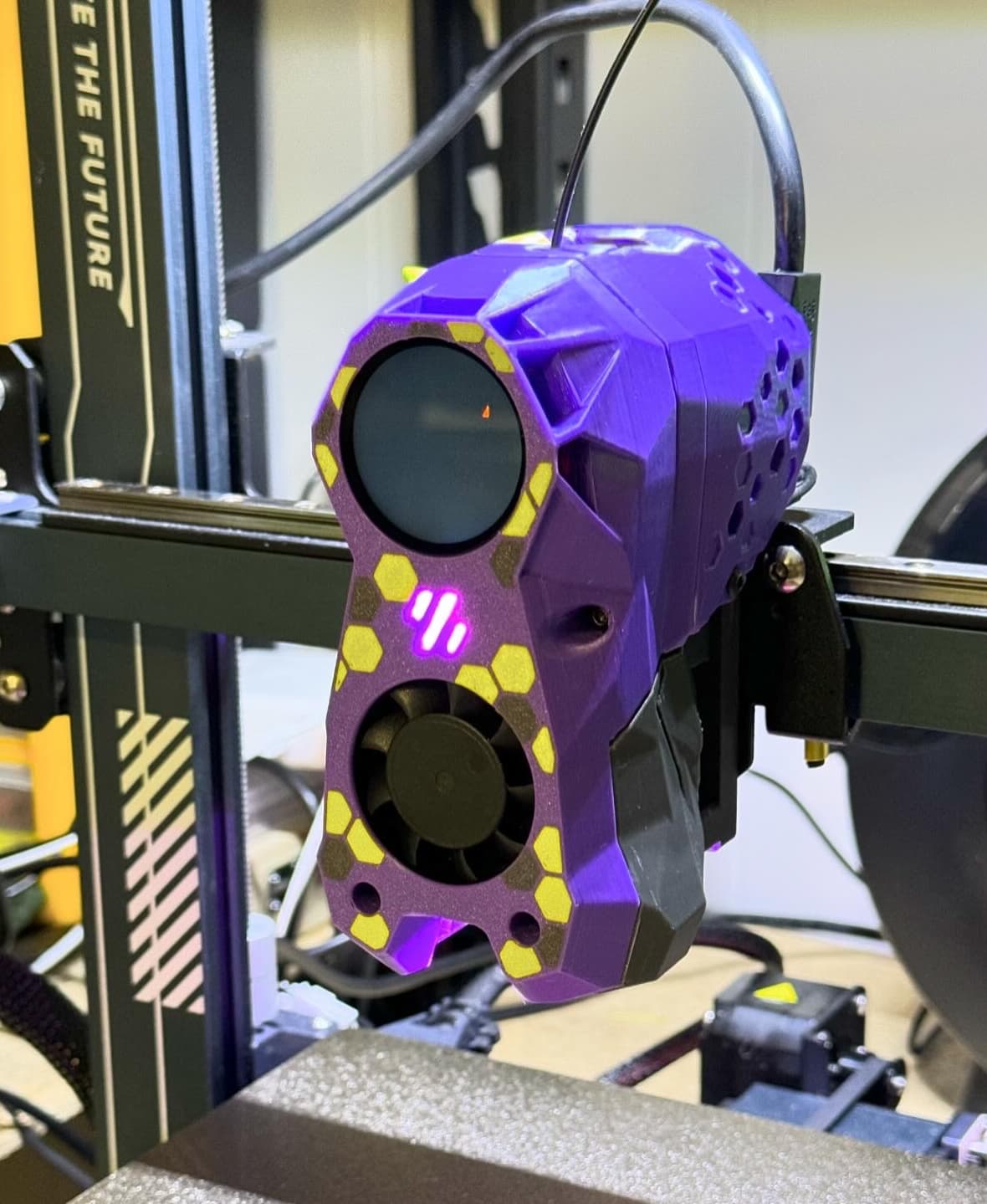

Hex Cable Door for BigTreeTech SB2240 / 2209 StealthBurner PCB - Printed in Polymaker ABS on my LDO Voron 0.2-S1! :) - 3d model
Hex Cable Door for BigTreeTech SB2240 / 2209 StealthBurner PCB 3d model
This model is restricted by licensing terms.
67 Likes455 DownloadsAugust 7, 2023
This model is restricted by licensing terms.


Hexagons for your CAN... agon.

The BigTreeTech SB2240 and SB2209 (EBB CAN Boards) allow for clean wiring & fine control with a StealthBurner toolhead on various Voron 3D printers. However these boards can run warm, so I designed a PCB Cable Door Cover that has Hex holes in it to allow some ventilation for cooling. Also it just looks cooler, cause hexagons are bestagon. Excellent to spruce up the StealthBurner toolhead on your Voron 2.4, Trident, or SwitchWire build.

REQUIRES use of a modified ClockWork 2 main body (included with the BigTreeTech STLs for the EBB SB2240 / 2209 found here: EBB Master


Parts Used (Affiliate Links):


Files Included:

  • BTT SB2240 Hex Cable Door STEP File
  • BTT SB2240 Hex Cable Door STL
  • BTT SB2240 Clockwork 2 Main Body STL

Recommended Print Settings:

  • 4 Perimeters
  • 40% Infill
  • No Supports Required
  • ABS or ASA Filament.

Want to Support what I do? Check out my social medias please!

Link Tree: http://www.MandicReally.com/links

Design covered by GPL3 Open Source License.
