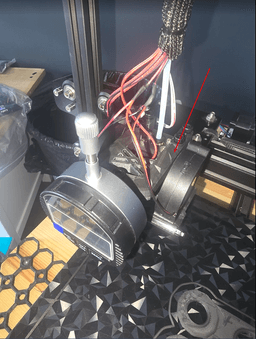

The model is a two-part system specifically designed for mounting a dial gauge on the Tevo Tarantula Z-axis Carriage. This mount has been designed for the Neoteck DTI Digital Dial.

Parts Required:

• 4 x M5x12
• 4 x M5 nuts
• 4 x M3x16 (This should already be on your Printer, mounting the hotend)
• Super Glue ( ensure nuts stay in recess on carriage mount )
• Neoteck DTI Digital Dial: https://amzn.to/3WgbuTg.

Print Settings

• Printer: Tevo Tarantula
• Slicer: Ultimaker Cura Slicer
• Resolution: .2mm
• Infill: 15-20%
• Supports Needed?: Yes
• Filament Used: OVERTURE PLA Filament 1.75mm https://amzn.to/3WiE0DK.

Notes:

• Arm mount: Can be printed on both flat sides.
• Carriage Mount: Print on flat side
