M2 T-Nut - use for Voron 0.1 Makerbeam XL 1515 Extrusion

M2 T-Nuts for Voron 0.1 Makerbeam XL 1515 extrusion. Use with M2 self tapping screws or bolts.
M2 T-Nuts are great for attaching components to Voron 0 3D printers, to 1515 aluminium extrusion or even attach the Voron 0 case using the T-Nuts. You can use these 'post build' when you can't slide any M3 nuts into the extrusion slots because the ends are blocked off.

The extrusion gap is 3.3mm so the T-Nuts have only a small amount of plastic to encase the M2 thread, so worth watching the video to print them correctly.

See video for tips on how to make & use
https://youtu.be/b-SEgJt-8dc

T-Nuts for 1515 extrusion are hard to come by so these plastic versions are a good solution. They're not designed for heavy loads but are good for extra add ons.

They're great for attaching Voron 0 case panels!  No fiddling with M3 nuts and positioning them in the right place.

**How to Print**
Prusa Slicer - Printer setting "Perimeter Generation" should be Classic not Arachne  so the perimeter lines are continous and stronger at the sides of the print.  Arachne seems to break up the lines which weakens the print.  Check the above YouTube video for details.

- 0.4 nozzle
- 0.2mm layer height
- Print in ABS if installing in a hot enclosure.

**How to use**
- Put screw in the correct side which is the side with the round collar.
- The screw length should be the thickness of the object plus 3-4mm.  For example, 8mm M2 screw requires 4mm thickness for the object being attached and 4mm into the slot.


M2 T-Nuts - use for Voron 0.1 Makerbeam XL 1515 Extrusion

3d printer spring stand

spring_stand_0.stl

Pés Anti Trepidação

PesAntiTrepCapaSup.stl

Recycle Bins

recycle1.stl

notecard holder

no supports. uses 53 grams of filament with 30% infill. you can mount it on your wall with Velcro or it sits really nice on your desk.

Coffee Lid Stopper

Split Gridfinity Box

Split Box.stl

Filament Suport Mod

Universal film holder for 35mm outer and 15mm inner bearing, but can be used without bearing.

suporte de filmento universal para rolamento de 35mm externo e 15mm interno, mas pode ser usado sem rolamento.

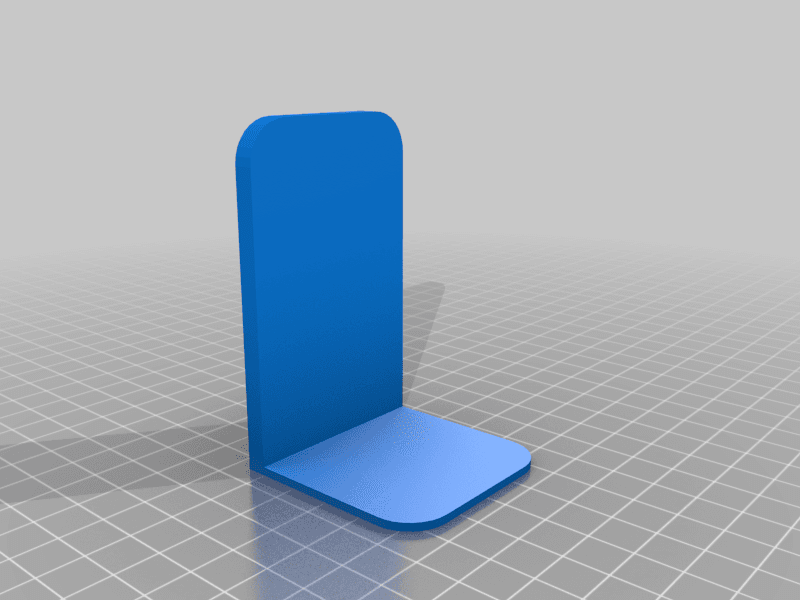

Book End (Fast Print) 📚📖📙
